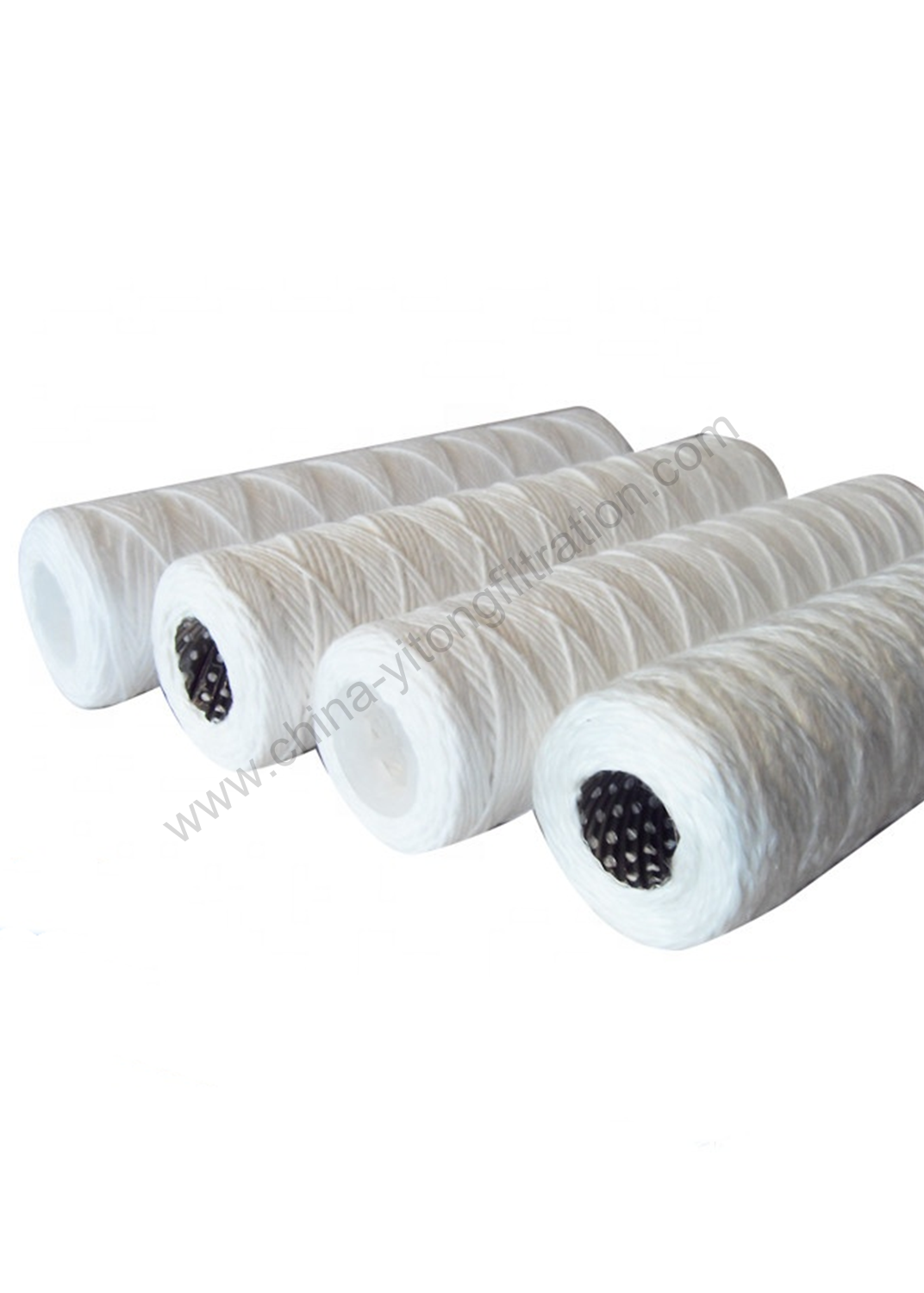

  • String Wound Filter Cartridge

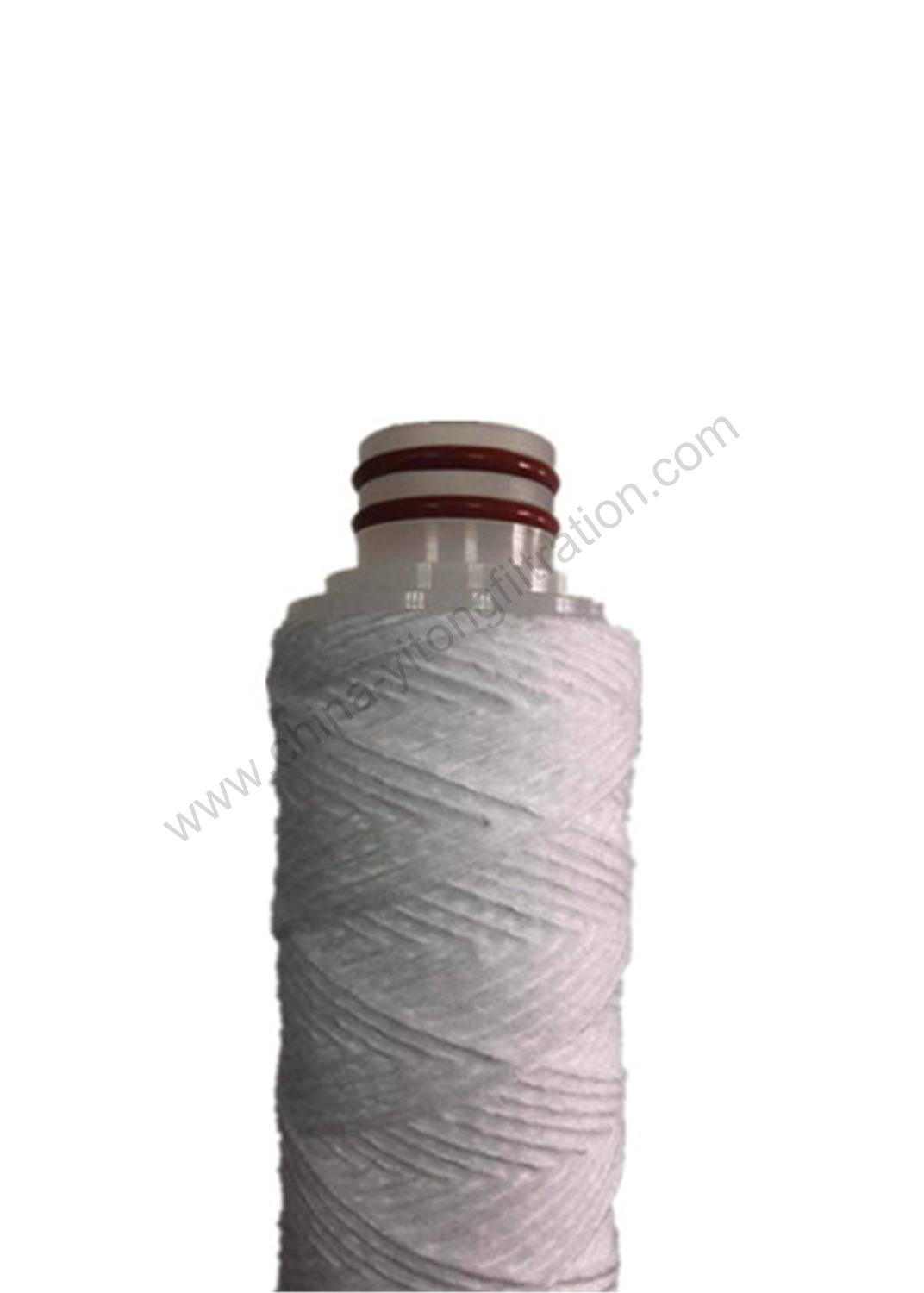

  • String Wound Filter Cartridge

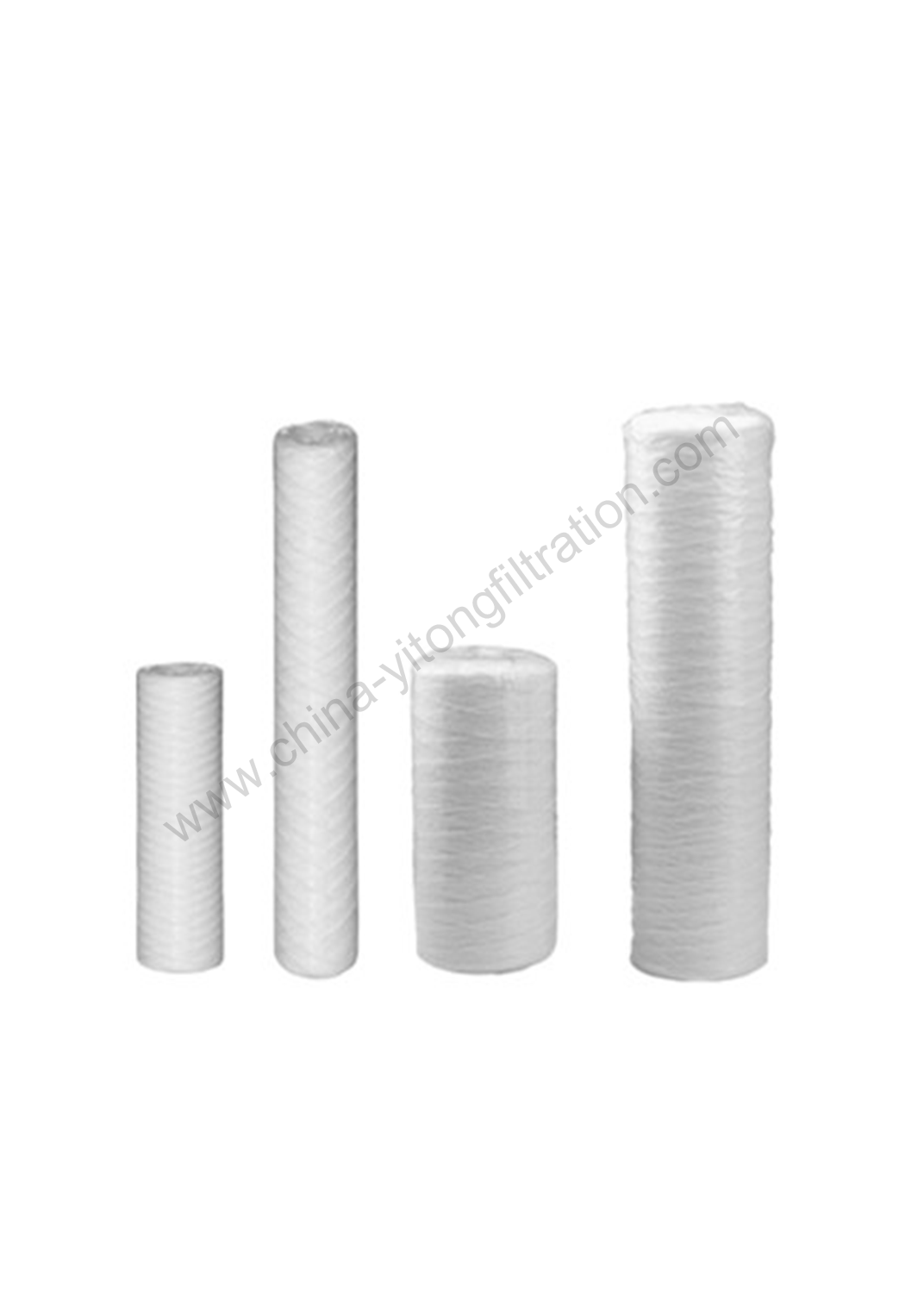

  • String Wound Filter Cartridge

String Wound Filter Cartridge

Share

Yitong string wound filter cartridge adopts the cotton thread as the filter media.

Products Details

String Wound Filter Cartridge

Product Description

Yitong string wound filter cartridge adopts the cotton thread as the filter media. The cotton thread is winded around the PP core layer by layer, provides truely depth filtration. It has great dirty holding capacity and interception ability, which provides great sediment filtration effectiveness. It also has exceptionally high structural strength, therefore, it can withstand higher PSID and severe operating conditions.

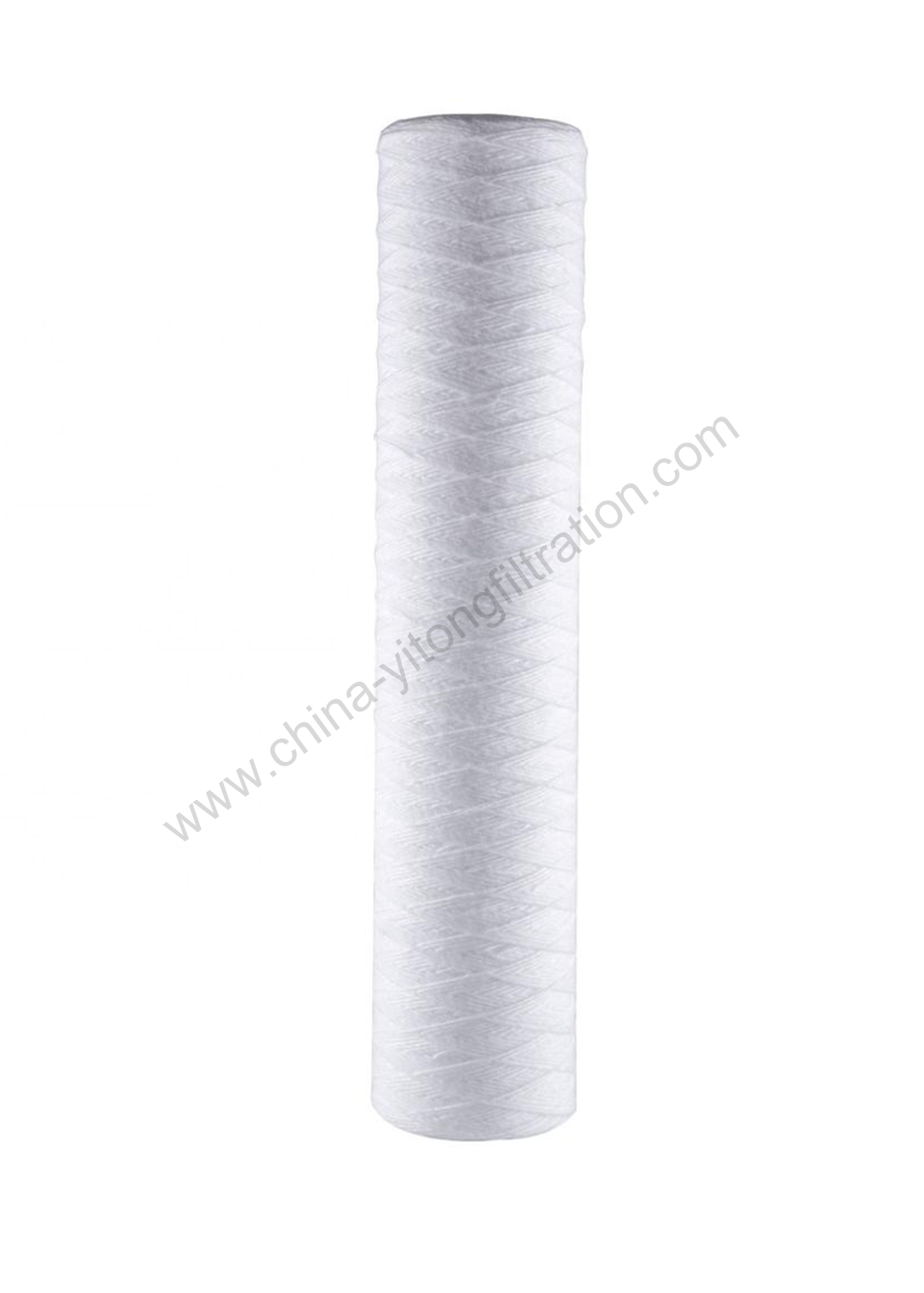

String Wound Filter Cartridge

Product Features

1 Fits all the standard housing

2 Low pressure drop,high dirt holding capacity and long service life.

3 Loose outer layers and tight inner layers offers effective depth filtration.


Application

1 Chemical industry: all kinds of organic solvents, acid, alkali filtration, and oil field injection water filtration, etc.

2 Electronic industry: pure water, ultrapure water filtration, etc.

3 Food and beverage industry: all kinds of alcohol, beverage, water filtration, etc.

4 Pharmaceutical industry: all kinds of injection, liquid medicine, and bottles washing water filtration, etc.

5 Water treatment: reverse osmosis pre-filteration.


Technical Parameter

Cartridge Structure

Filter membrane

Textile fiber thread
Guide layerPP
Inner support、end cap、shellPP
Seal ring materialSilicone,Viton,EPDM,PTFE
Working Situation
Max.working temperature≤60℃
Max. working pressure drop0.4Mpa/23℃
Rating0.5, 1, 5, 10, 30, 50, 75, 100 micron
Length
5, 10, 20, 30, 40, 50, 60 inch
OD59mm
