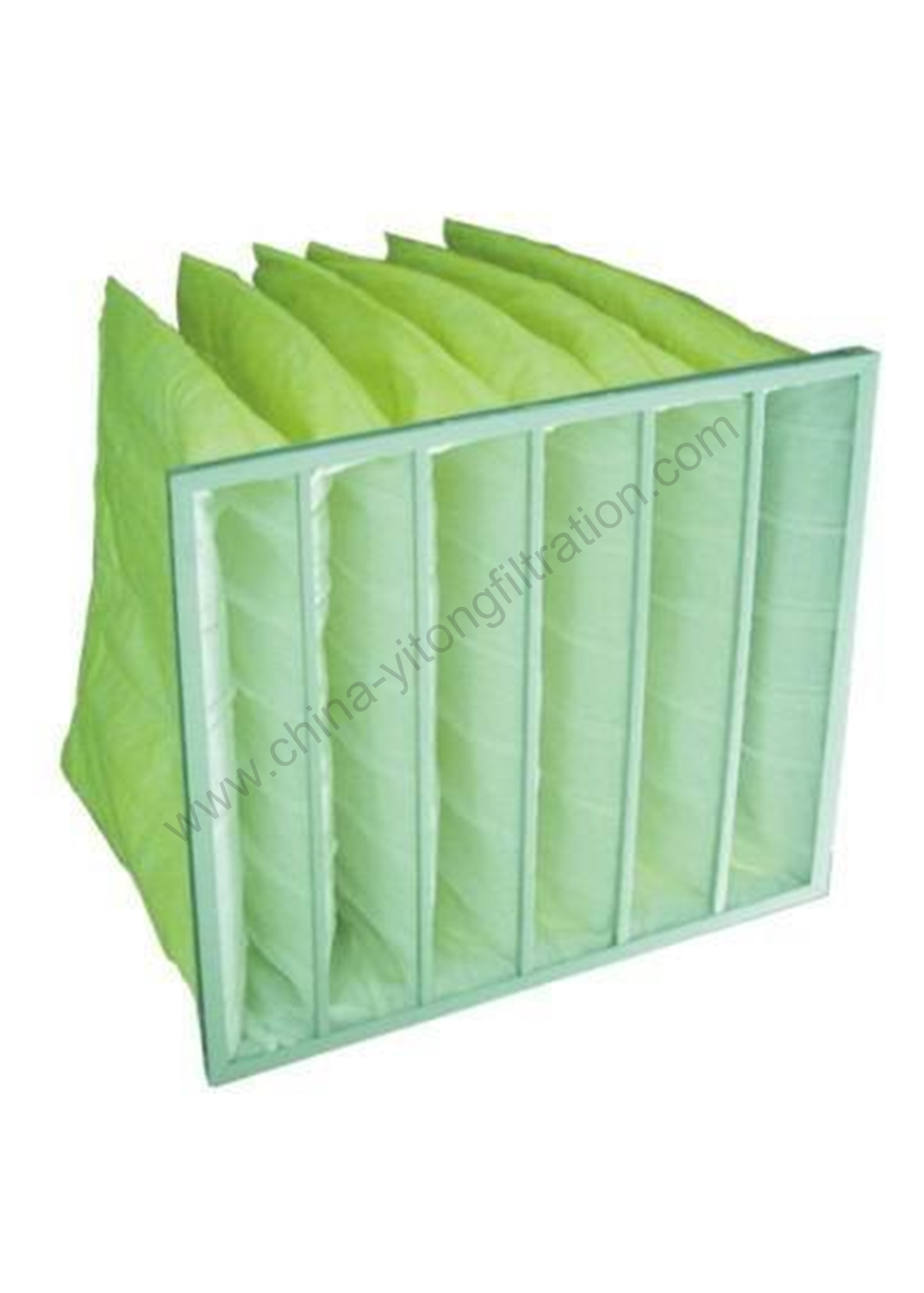

Bag Type Medium Efficiency Air Filter

Share
Products Details

Medium Efficiency Air Filter

Product Description

Bag-type medium-efficiency filter is a kind of medium-efficiency filter. It is made of multi-layer non-woven fabric with large filtering area, low initial resistance, high air permeability and high dust holding capacity.

Bag Type Medium Efficiency Air Filter

Product Feature

1. Multi-bag design, large ventilation;

2. Ultrasonic high temperature fusion, better air tightness;

3. Frameless design is optional, the frame and support frame can be reused.


Application

1. Clean room fresh air conditioning system, mid-range filtering of new fan units;

2. The secondary or final filtering of the central air-conditioning system;

3. Main filtration of air purification equipment;

4. Pre-filtration of high-efficiency filter.


Technical Parameter


GradesFiltration effectivenessSize air quantity(m/h)Initial resistance(Pa)Pockets
F540%-45%595*595*5003200506
F540%-45%495*595*5002700506
F660%-65%595*495*5003200606
F660%-65%495*495*5002200605
F780%-85%595*495*600320010510
F780%-85%595*495*60030001058
F890%-99%595*595*600300011510
F890%-99%595*495*60027001158
