A medium efficiency air filter is designed to capture airborne particles in the medium size range, typically between 1 and 10 microns. These filters are commonly used in HVAC systems to improve indoor air quality by removing dust, pollen, mold spores, and other particulate contaminants.
Key Features:
Efficiency Rating: Medium efficiency filters usually have a MERV (Minimum Efficiency Reporting Value) rating between 8 and 13. The higher the MERV rating, the more effective the filter is at capturing smaller particles.
Materials: These filters are often made from pleated synthetic fibers, fiberglass, or cotton, which provide a larger surface area for capturing particles.
Applications: They are suitable for residential, commercial, and light industrial applications where a balance between cost and air quality is desired.
Maintenance: Regular maintenance and replacement are necessary to ensure optimal performance, as clogged filters can reduce airflow and strain HVAC systems.
Benefits:
Improved Air Quality: Captures common allergens and pollutants, contributing to healthier indoor environments.
HVAC Protection: Helps protect HVAC equipment from dust and debris, potentially extending the system's lifespan.
Energy Efficiency: Proper maintenance can help maintain efficient airflow, reducing energy consumption.
Product Description

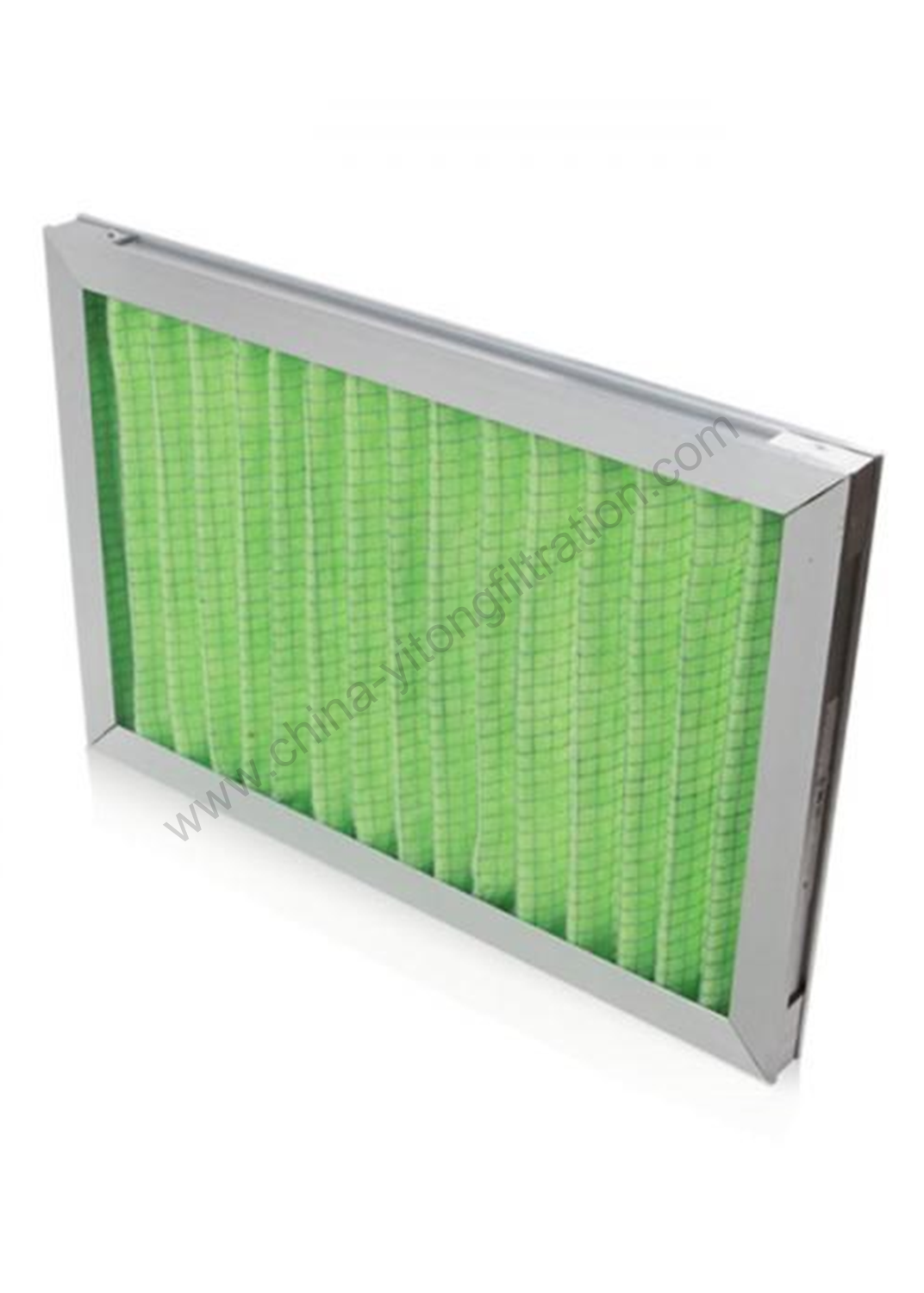

Yitong medium efficiency air filter is made of non-woven fabrics and galvanized plate. It can stop the particles at the size of 1-5 microns. The thermal bonded tech is used to improve the leakproofness and reduce the possibility of breakage. It has not only the advantages of high throughout, low resistance and high dirt holding capacity but also can be reusable because it is washable which gives it longer service life.
Product Feature
1 High temperature resistance and high efficiency
2 High capacity, great ability
3 Reusable
Application
It’s mainly applied for the medium filtration in hospitals, chemical industry, electronic industry, and pharmaceutical industry, which could relief the workload of the high efficiency filter.
Technical Parameter
| Grades | Filtration effectiveness | Size | air quantity(m/h) | Initial resistance(Pa) | Pockets |
| F5 | 40%-45% | 595*595*500 | 3200 | 50 | 6 |
| F5 | 40%-45% | 495*595*500 | 2700 | 50 | 6 |
| F6 | 60%-65% | 595*495*500 | 3200 | 60 | 6 |
| F6 | 60%-65% | 495*495*500 | 2200 | 60 | 5 |
| F7 | 80%-85% | 595*495*600 | 3200 | 105 | 10 |
| F7 | 80%-85% | 595*495*600 | 3000 | 105 | 8 |
| F8 | 90%-99% | 595*595*600 | 3000 | 115 | 10 |
| F8 | 90%-99% | 595*495*600 | 2700 | 115 | 8 |
Considerations:
Initial Cost vs. Long-term Savings: While medium efficiency filters may have a higher upfront cost compared to low-efficiency filters, they often provide better air quality and system performance over time.
Replacement Frequency: The lifespan of these filters can vary based on usage and environmental conditions, so regular checks and timely replacements are essential.
