Coalescing Filter Element

Aug. 22, 2019

The coalescing filter element adopts a specially designed filter layer to utilize the affinity of the material surface for a medium. When the medium flows through the filter layer, the coalescing medium particles are adsorbed on the fiber surface, and the dispersed minute droplets are gathered. The knots are combined with each other to form large droplets.


Coalescing filter element: It is mainly divided into two kinds of separation filter elements: liquid-liquid coalescence and gas-liquid coalescence. Since the filter element of the separation filter element is composed of a hydrophobic material, only the anhydrous oil is allowed to pass, and the hydrophilic liquid droplet is blocked outside. It settles at the bottom of the system by the action of gravity, and the oil and hydrophilic liquid flow out through different pipes to achieve separation of different liquids.


Separation filter: oil-water separation

Filter material: The main filter material is made of high-efficiency imported coalescing material, and mesh mesh special filter material.


Coalescing filter element

1. Multi-layer composite structure filter paper with high filtration precision

2. Large amount of dirt and long service life

3. Carefully set and specially treated glass fiber layer, good coalescence effect


Separation filter:

1. Use 200 mesh stainless steel oil and water to separate the net, the flow resistance is small, and the separation effect is good.

2. Structure and materials are in line with international standards

3. A variety of specifications to meet the needs of a variety of filtration


Applications:

1. It is suitable for the drying of various gases, and can separate the mist of particulate particles diffused in the gas to achieve the purpose of drying and dehydration. The method of use is basically the same, and the drying effect is determined according to the production requirements, height, quantity and relevant parameters of the film.

2. It is suitable for the separation of liquid-liquid non-melting mixtures with large difference in specific gravity, such as liquid gas and water.

3. Examples of working media: transformer oil, turbine oil, hydraulic oil, gasoline, diesel, kerosene, natural gas, fuel gas, etc.


Parameter:

Length: 10”, 16”, 18”, 20”, 32”, 40”, 72” Customization service

Accuracy: 0.01um-10um

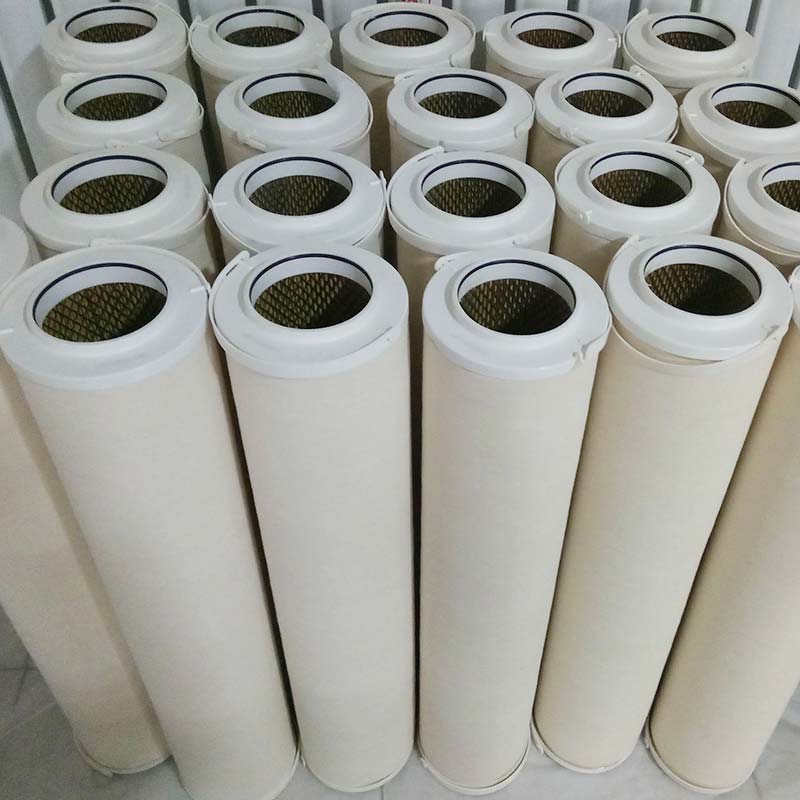

Coalescing Filter Element
