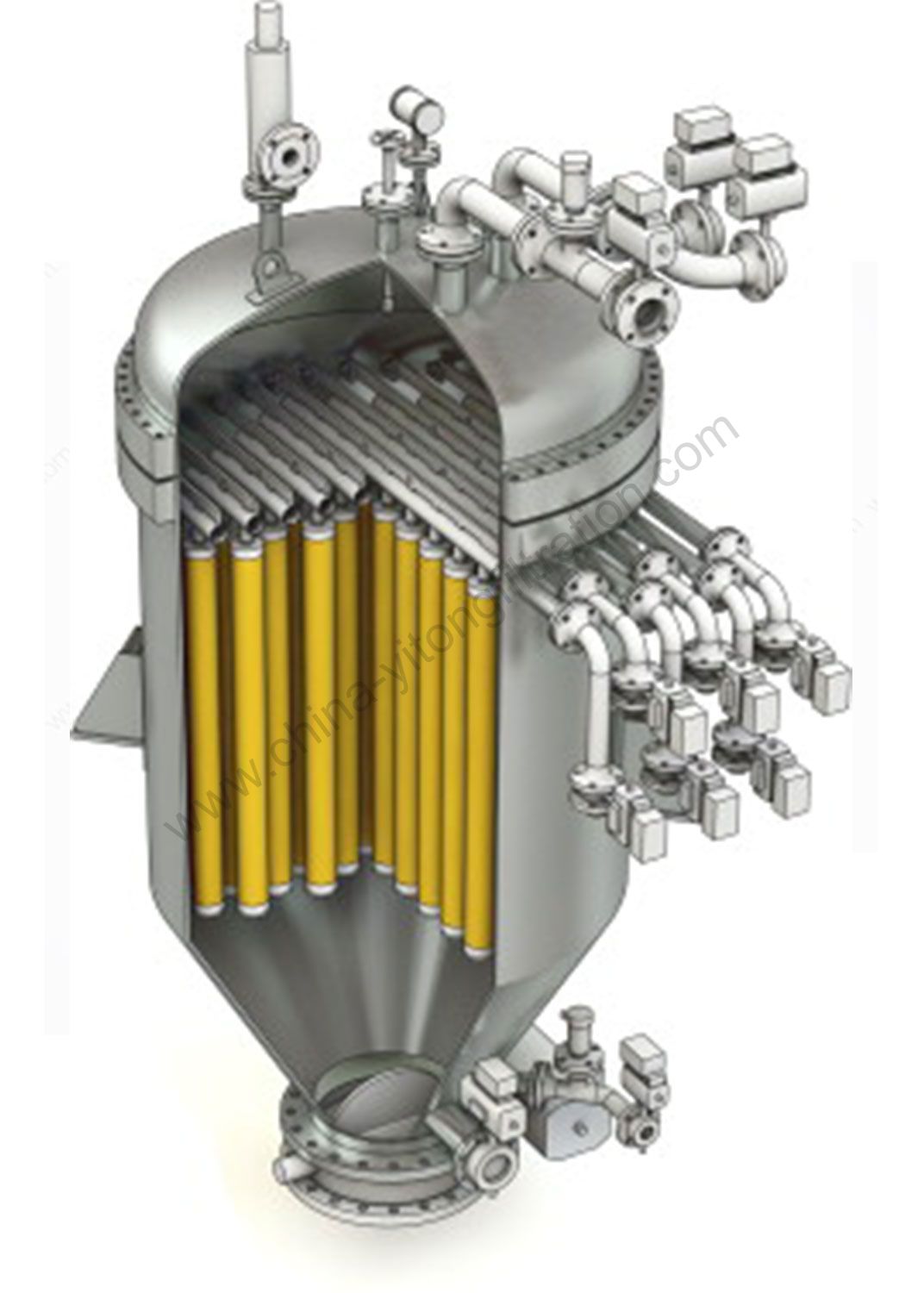

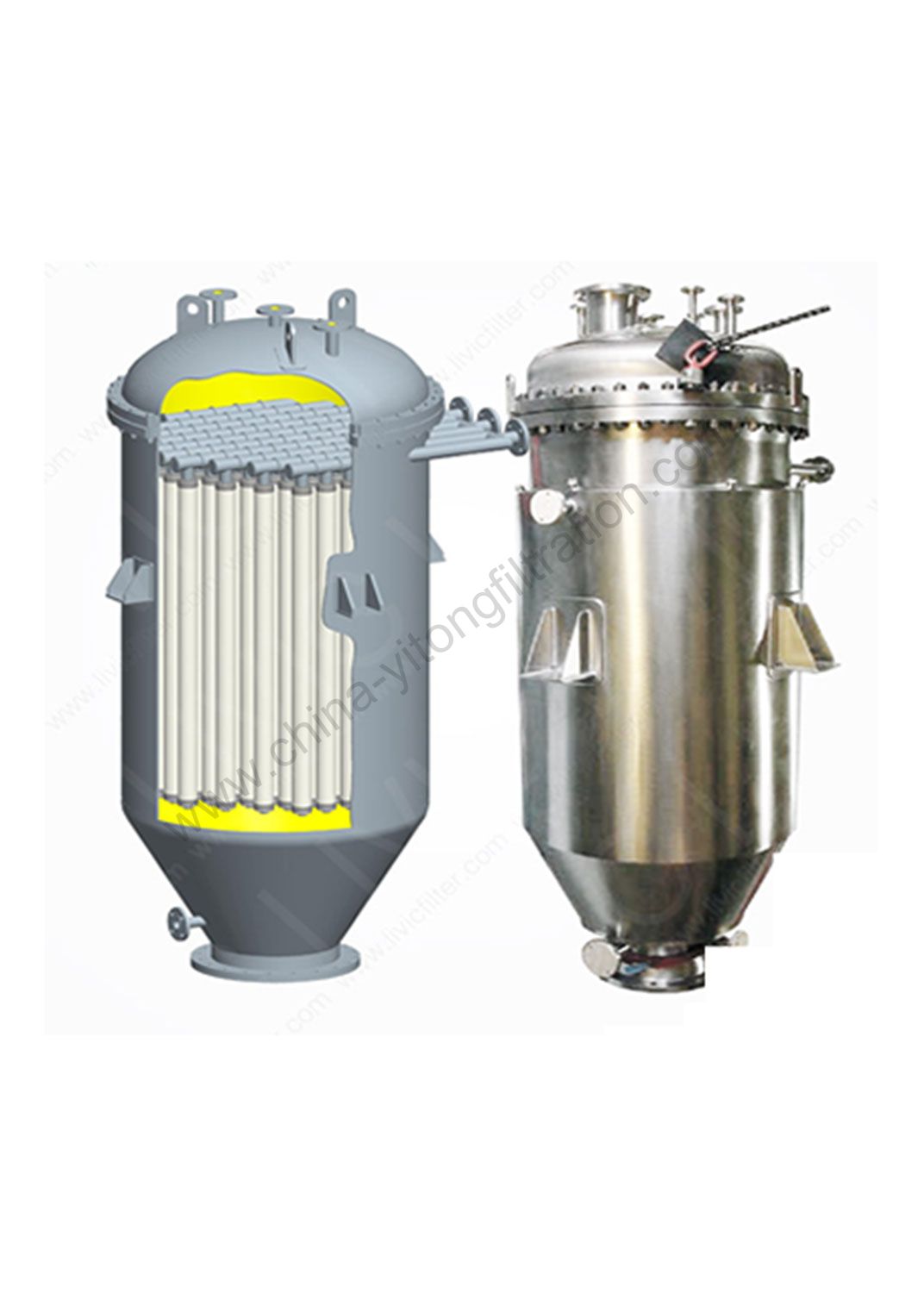

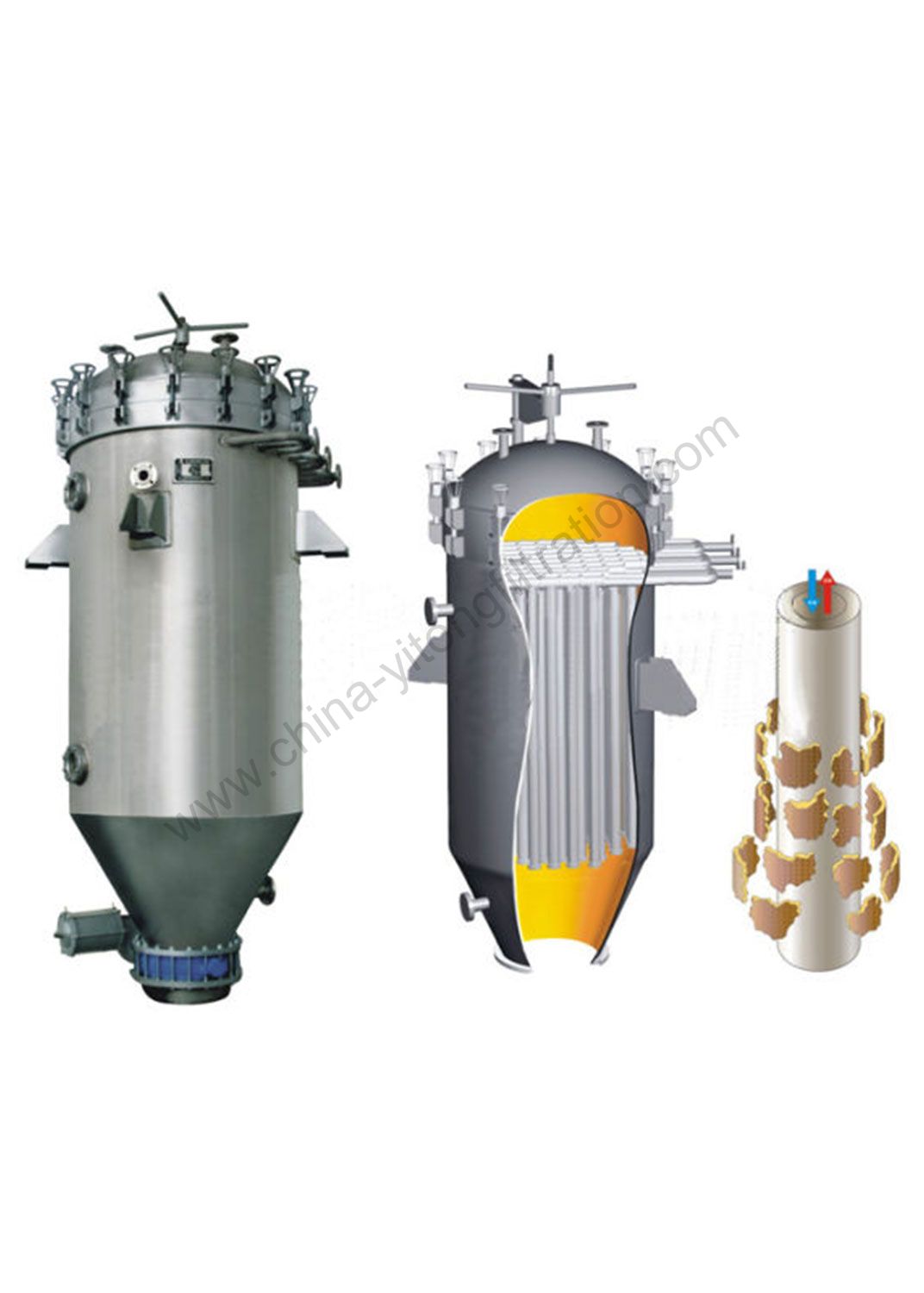

The Candle Filter (Boilermaker Filter) is a fully automatic, vertical pressure filtration system. It uses unique "plum-blossom" shaped filter elements covered with specialized filter cloth.
The Candle Filter (Boilermaker Filter) is a fully automatic, vertical pressure filtration system. It uses unique "plum-blossom" shaped filter elements covered with specialized filter cloth.
Working Principle:
Adsorption & Filtration: Liquid enters the vessel. Under pressure, liquid passes through the cloth, while solids (carbon/catalyst) build up on the cloth surface, forming a "filter cake." The cake itself becomes the filter medium, achieving high precision (0.2 - 1 micron).
Drying: Once filtration stops, compressed air or Nitrogen is introduced to displace the liquid remaining in the vessel and dry the filter cake.

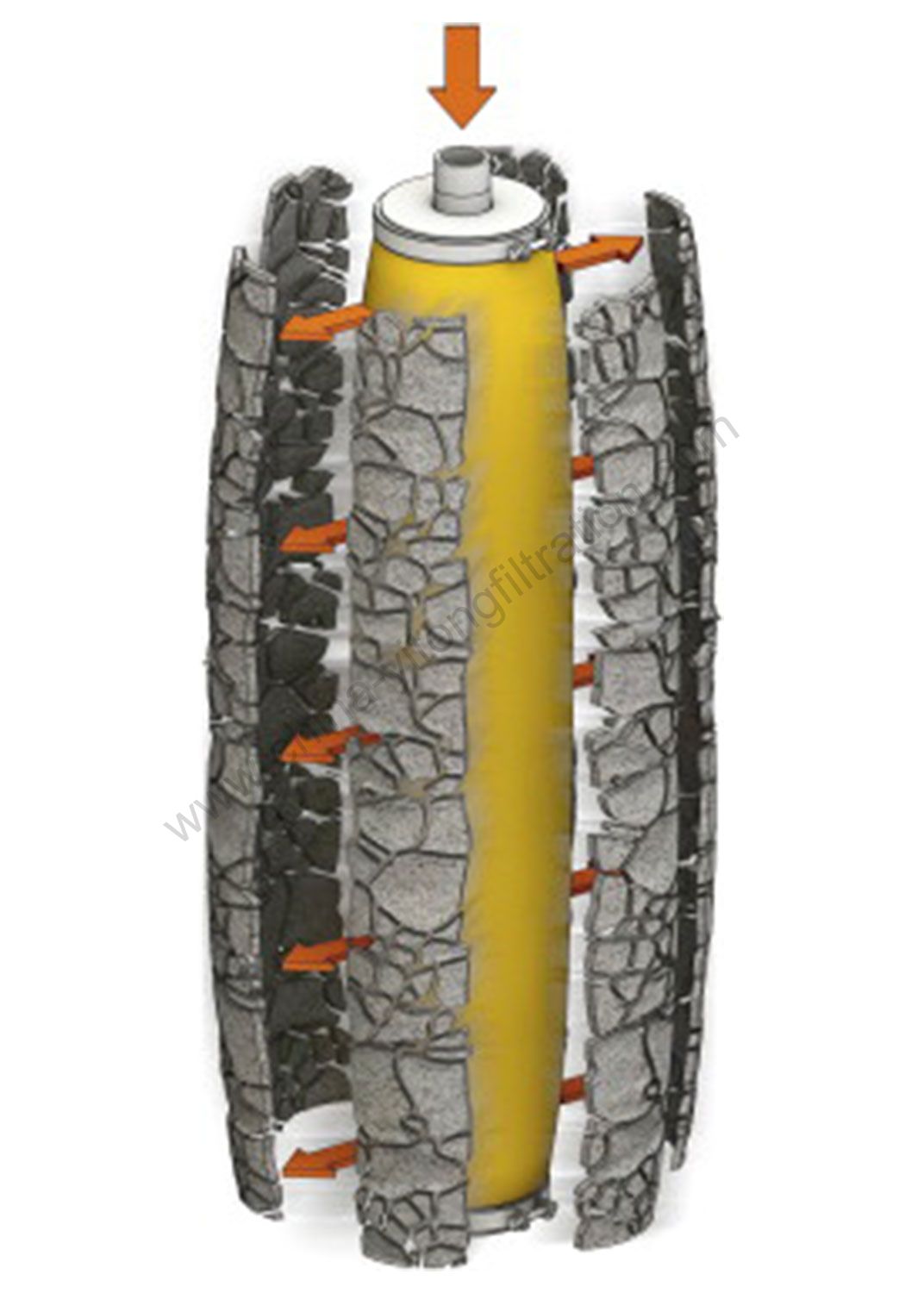

Back-blow Discharge: Clean gas is blown into the candle element from the inside out. The filter cloth expands, shaking off the dry cake, which falls into the bottom discharge outlet.
Key Technical Advantages
Zero Leakage: Hermetic design, suitable for volatile, toxic, or hazardous materials.
Dry Cake Discharge: Liquid content in the cake can be reduced to <20%, saving waste disposal costs.
No Residual Liquid: The unique "Zero-Heel" design ensures the bottom residual liquid is filtered completely via a bottom scavenger nozzle.
Cost-Effective: Manufactured strictly according to GB150 Standards, offering reliable quality at a competitive price compared to ASME-certified units.
Technical Specifications (Reference).
| Item | Specification |
| Filter Area | 1 m² to 100 m² (Customizable) |
| Design Pressure | 0.6 MPa / 1.0 MPa (Standard GB150) |
| Design Temperature | -20°C to 230°C |
| Filter Element Material | SS304 / SS316L / PP / Titanium |
| Filter Cloth | PP / PTFE / PA / PPS (Selected based on process) |
| Control System | PLC Automatic Control (Siemens/Schneider components) |
| Discharge Valve | Pneumatic Large-diameter Butterfly Valve / Knife Gate Valve |
Application
1. Fine Chemicals
Purification of synthetic resins：Epoxy resin,Phenolic resin
Decolorization and recovery of organic solvents)：Decolorization of dye and pigment intermediates
Impurity removal of specialty chemicals
Decolorization of surfactants
2. Agrochemicals & Pesticides
Decolorization in pesticide technical synthesis
Impurity removal of herbicide / insecticide / fungicide intermediates
Decolorization and purification of Glyphosate
3. Pharmaceuticals & Active Pharmaceutical Ingredients - APIs
Decolorization of antibiotic fermentation broth：Penicillin, CephalosporinDecolorization and impurity removal of pharmaceutical intermediates
Purification and decolorization of vitamins
Clarification and decolorization of traditional Chinese medicine extracts
4. Food & Food Additives
Decolorization of starch sugar / syrup：Glucose, High fructose corn syrup - HFCS。
Purification and decolorization of Monosodium Glutamate - MSG
Decolorization of organic acids：Citric acid, Lactic acid。
Decolorization of edible vegetable oils：Palm oil, Soybean oil。
Clarification and decolorization of fruit juices)
5.Daily Chemicals
Decolorization and deodorization of glycerin/glycerol
Purification of cosmetic raw materials
6. Environmental Protection & Water Treatment
COD (Decolorization and COD reduction of high-concentration industrial wastewater)
Impurity removal and purification of electroplating solutions
Why Choose Us?
Experience: Specialized in industrial filtration for more than 20 years.
Customization: We design based on your specific liquid viscosity, solid content, and temperature.
Service: We provide full English manuals, installation videos, and remote commissioning support.
