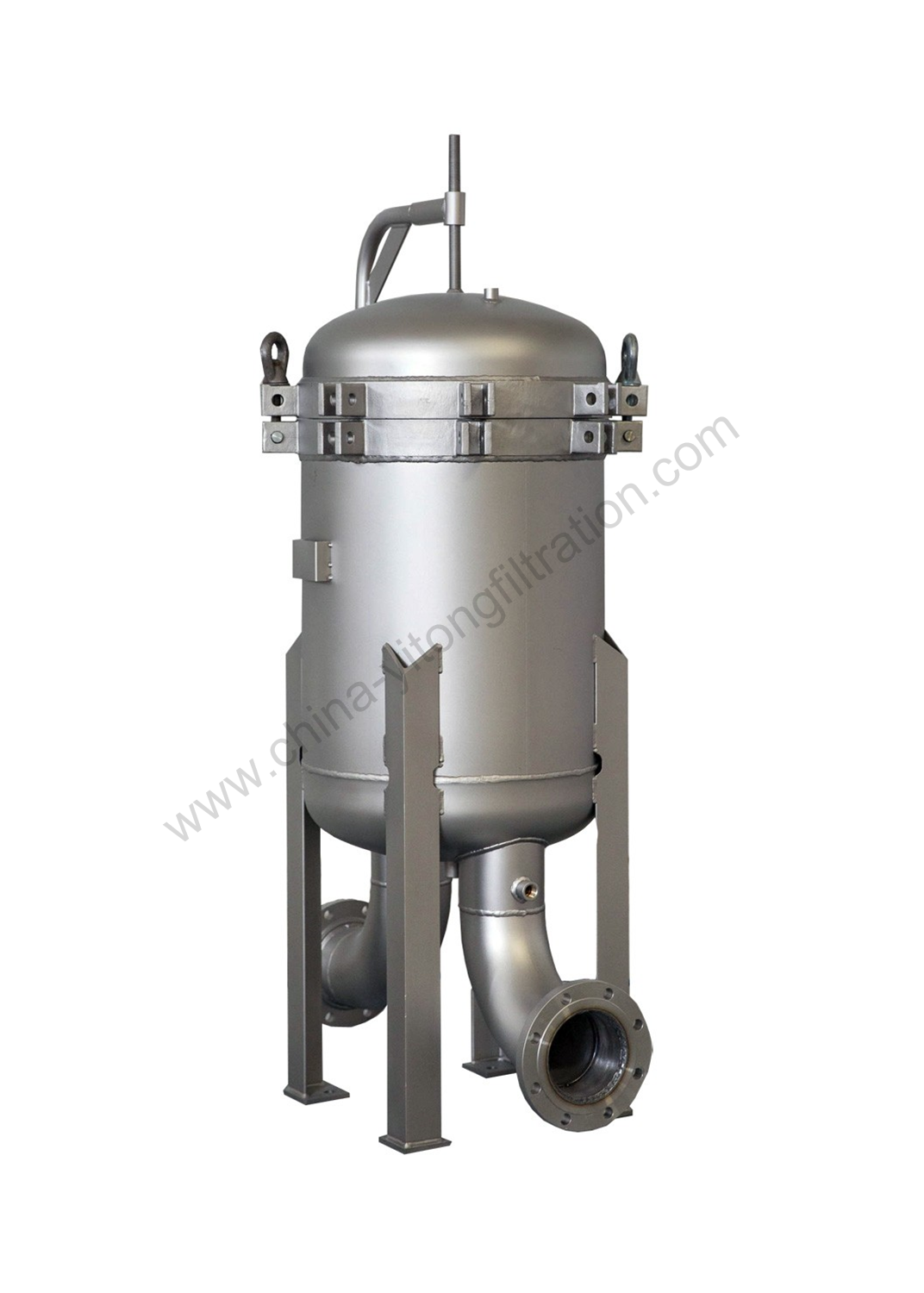

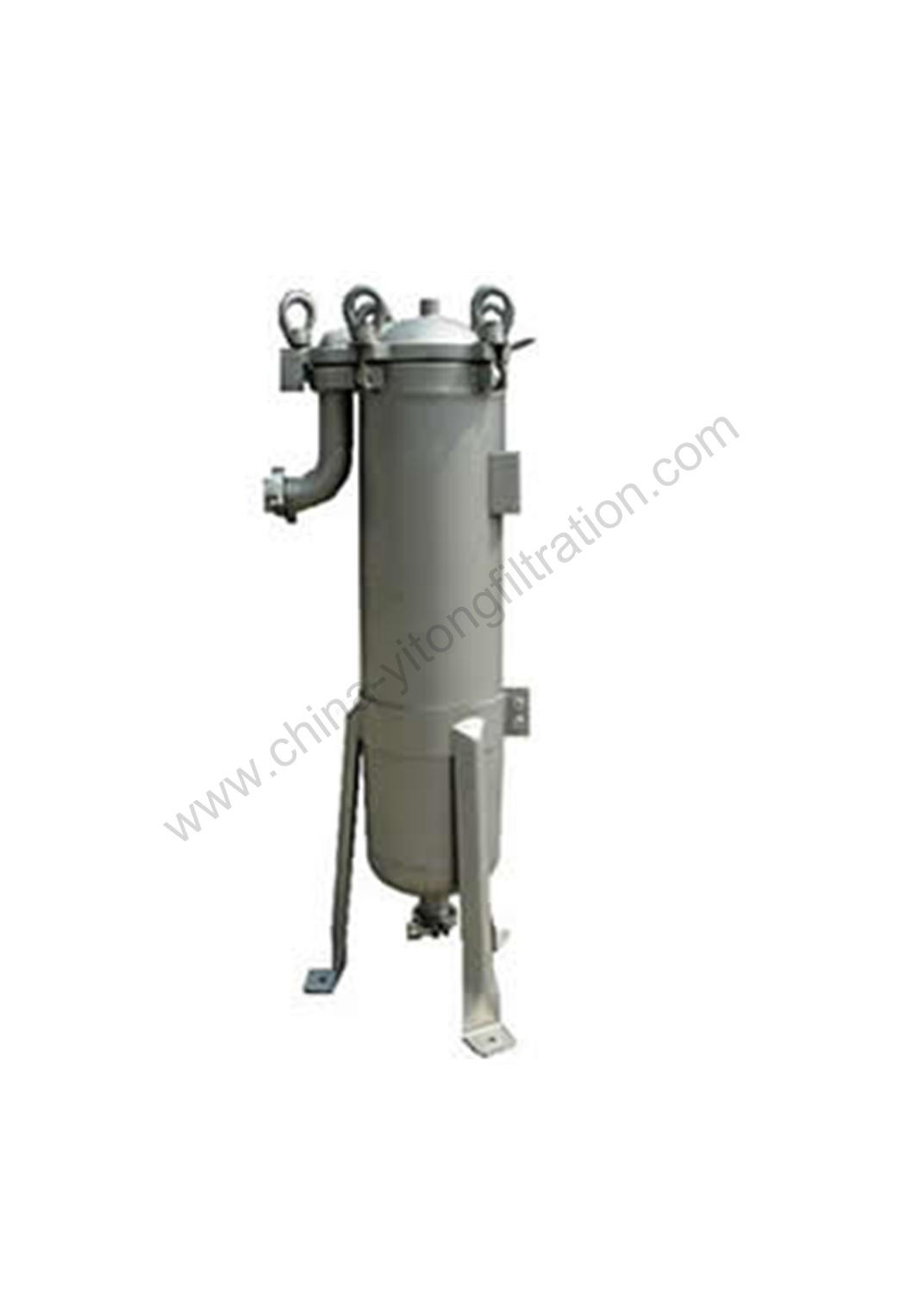

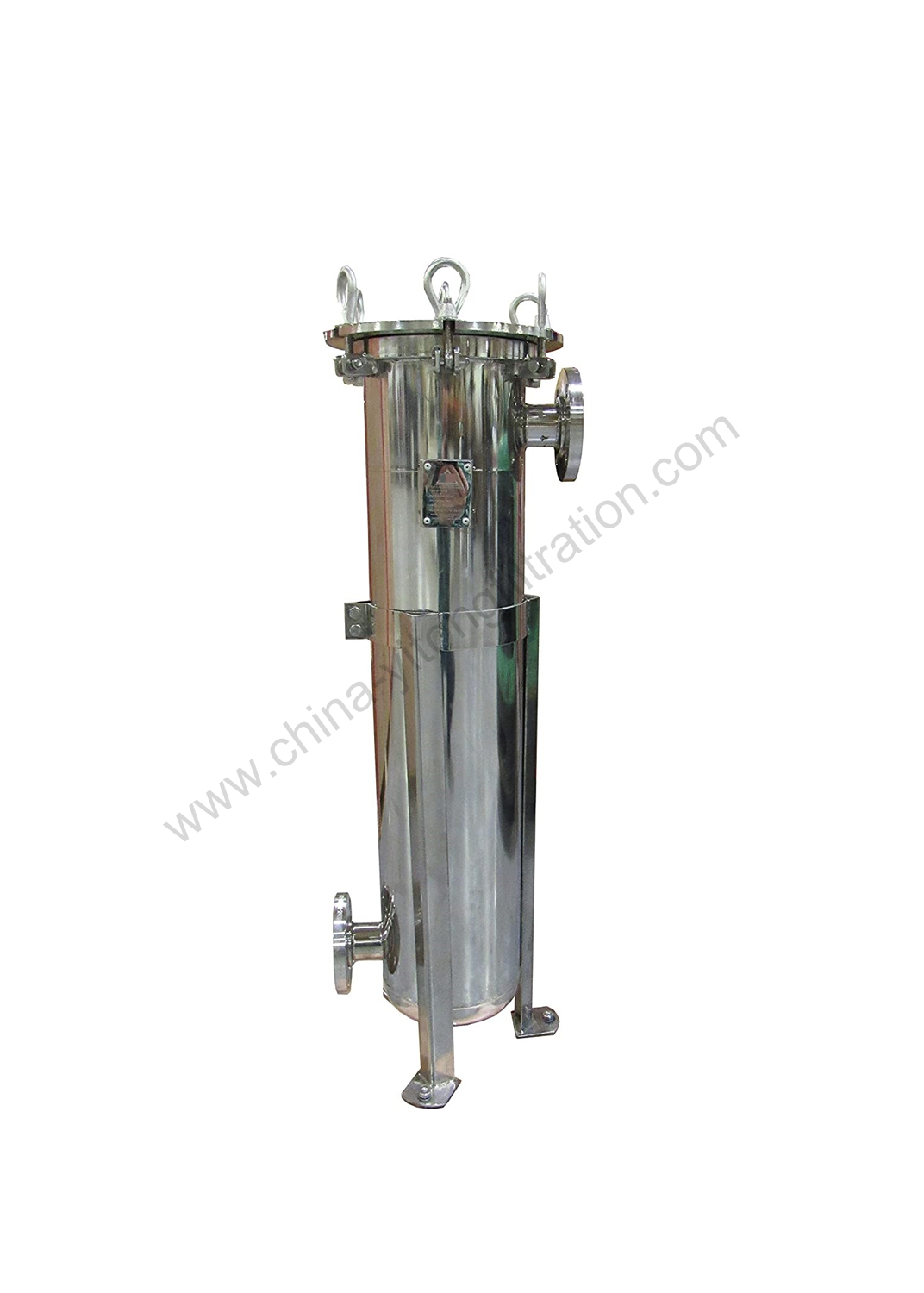

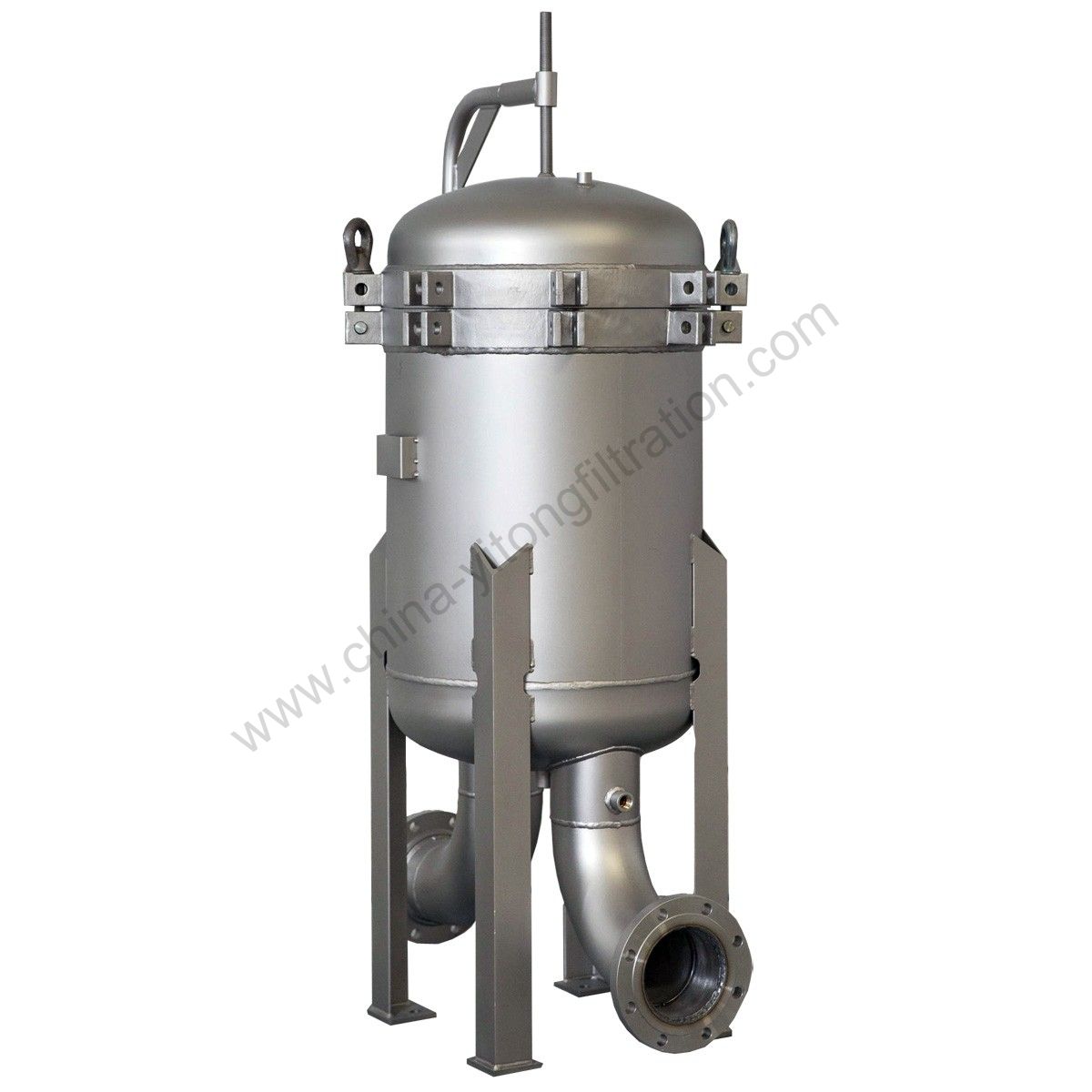

Side Entry Bag Filter Housing

Inquire Now Next Product

Products Details

Product Description

Yitong stainless steel Side Entry Bag Filter Housing is mainly used for coarse filtration and prefiltration,it is easy to operate, high effective, suitable for high flow, high capacity filtering applications. The filter bags inside the filter will be fixed well by the clamp ring, whihc provide great leakproofness.The 100% 304 or 316 stainless steel structrue makes it is corrosive-resitant, and gives a loonger service life.

Product Feature

1 Easy to operate, economical, suitable for high flux situation.

2 The spring is used to press the ring of filter bag tightly, make sure the leakproofness between the filter bag and the housing

3 The upper-lower path is adopted, the feed method is reasonable, easy to operate.

Application

It is suitable for the pre-filtration and rough filtration of the fluids with a certain content of solids, usually applied in the high flow rate filtration and security filtration.

Technical Parameter

1. Surface Finish

Finish type	Mechanical polishing, electrolytic polishing, sand blasting,pickling
Polishing precision	Inner surface Ra≦0.6um, Outside surface Ra≦0.8um
Polishing precision	Basket 0.6um

2. Operating Condition

Max operating pressure: 0.6 Mpa/1.0 Mpa

Max operating temperature: 150 ℃

3. Material

Shell/cylinder: 304/316L

Eye-bolt: SS304

Stabilizer blade: SS304

O-Ring/Gasket: EPDM, PTFE, VITON, SILICONE

4. Connection:

Connection of shell: flange

In-outlet: flange, quick-open, screw thread

Pressure gauge: 1.5"(#1 and #2 bag)M14*1.5 female thread (#3 and #4 bag)

1. Dimension

Description	cover
	#1		#2	#3	#4
Height-mm	990		1365	525	635
Distance from inlet to centre-mm	147			92
Diameter-mm	204		204	114	114
Height from inlet to ground-mm	835		1205	445	555
Height from outlet to ground-mm	250		300	100
In-outlet size-inch	1.5"/2"			1"/1.5"
Stabilizer blade-mm	500	800		300		400
Max flow cbm/h	20	40		6		12

#1 bag: 180*430mm, #2 bag: 180*810mm#3 bag: 105*230mm#4 bag: 105*380mm
