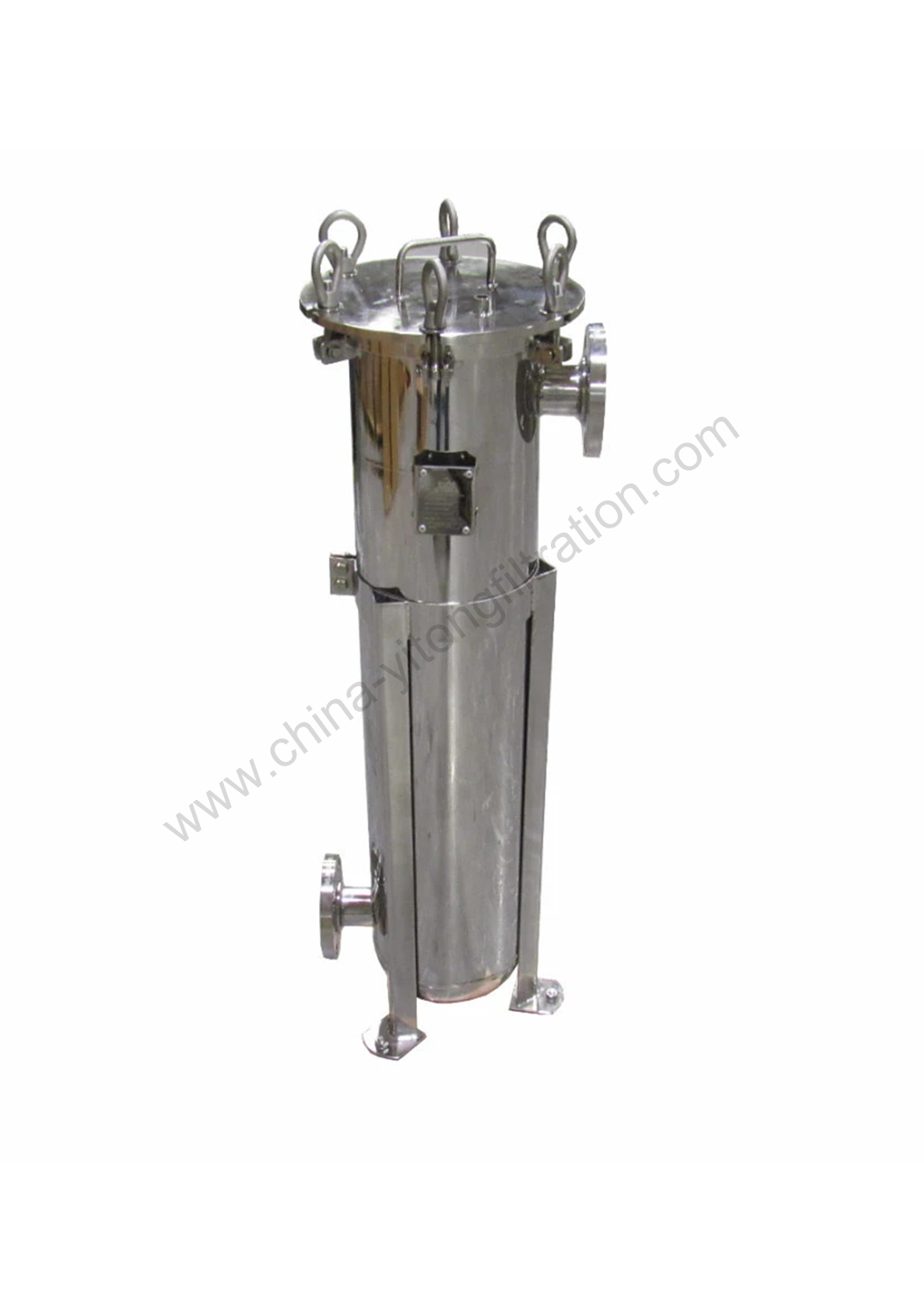

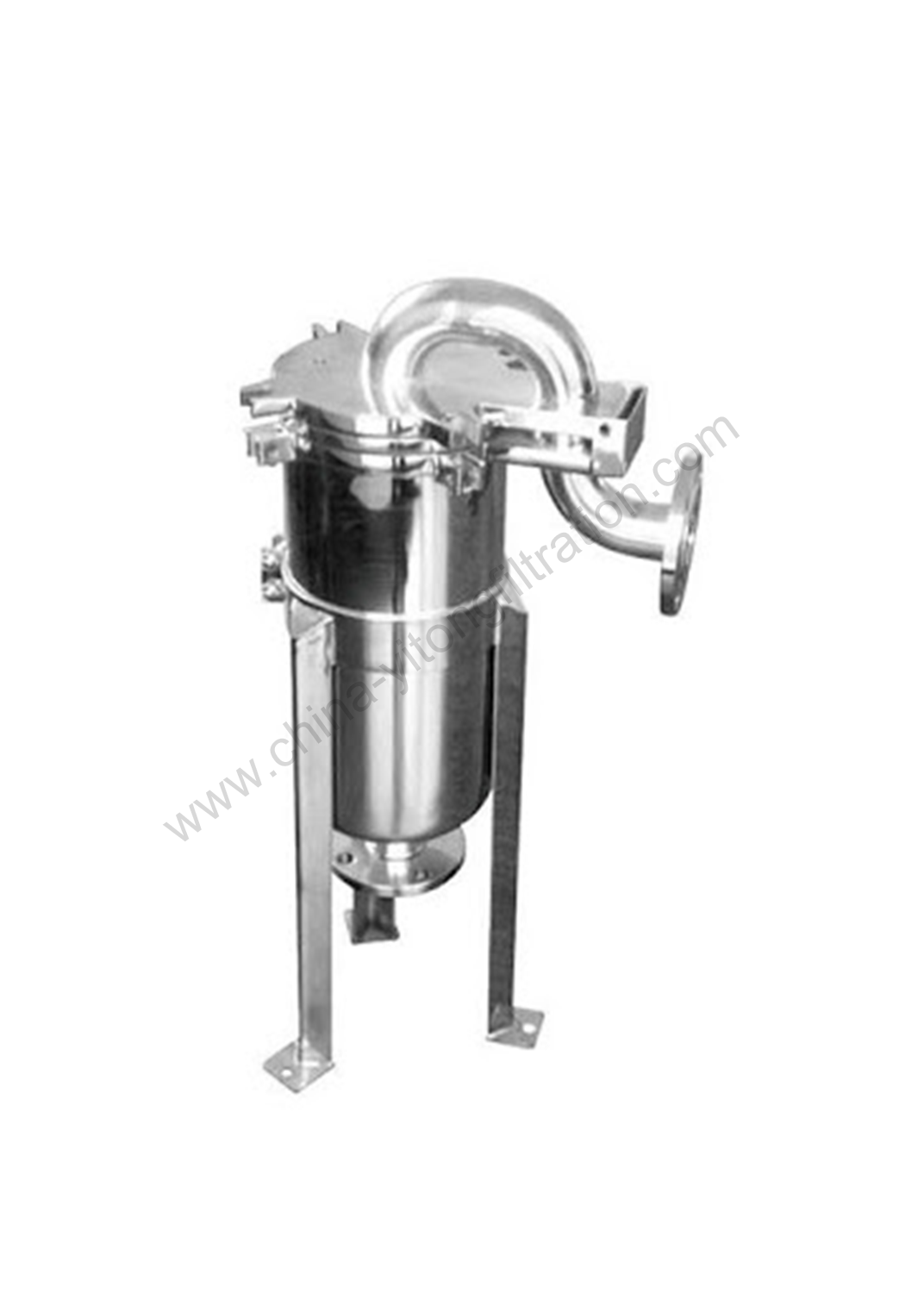

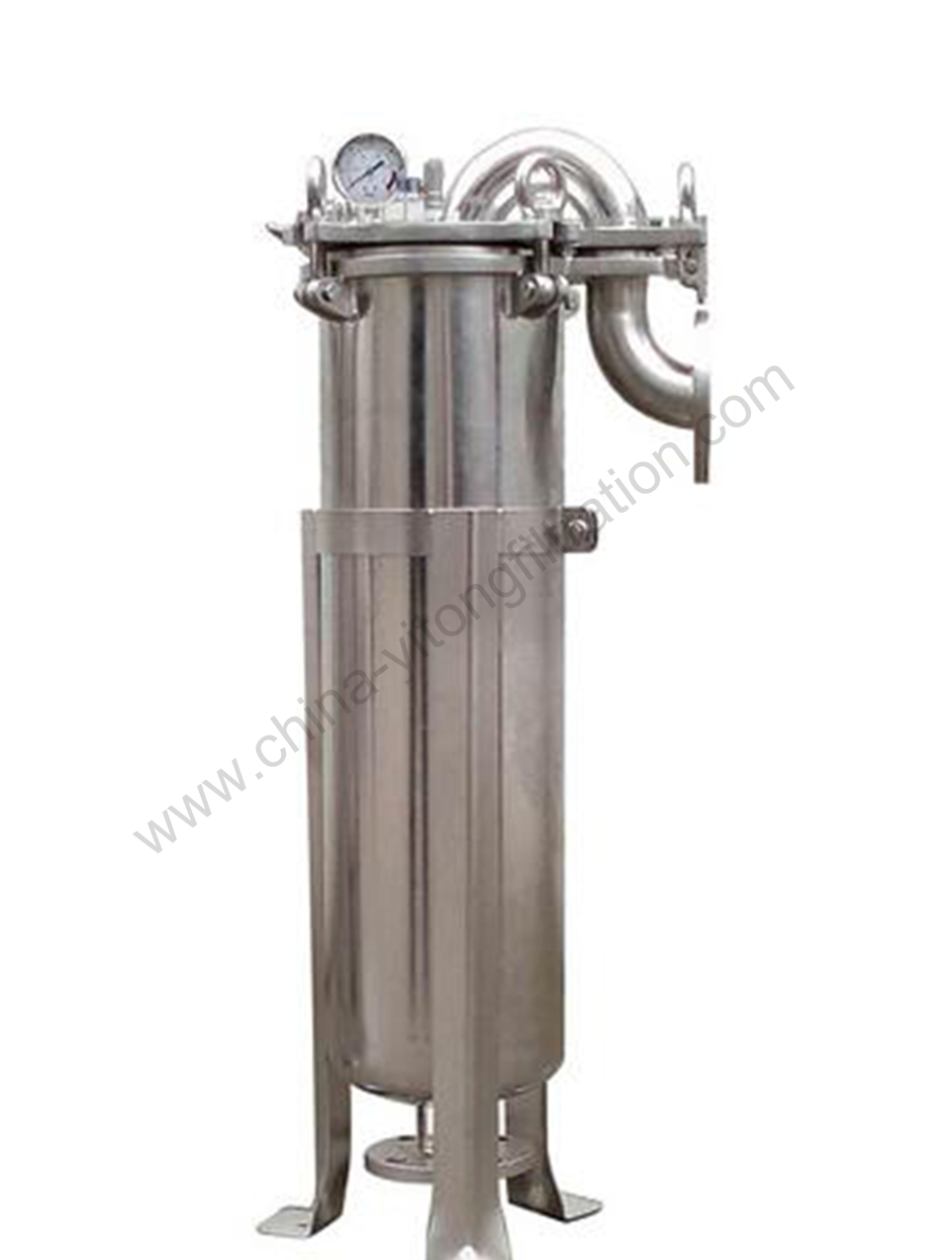

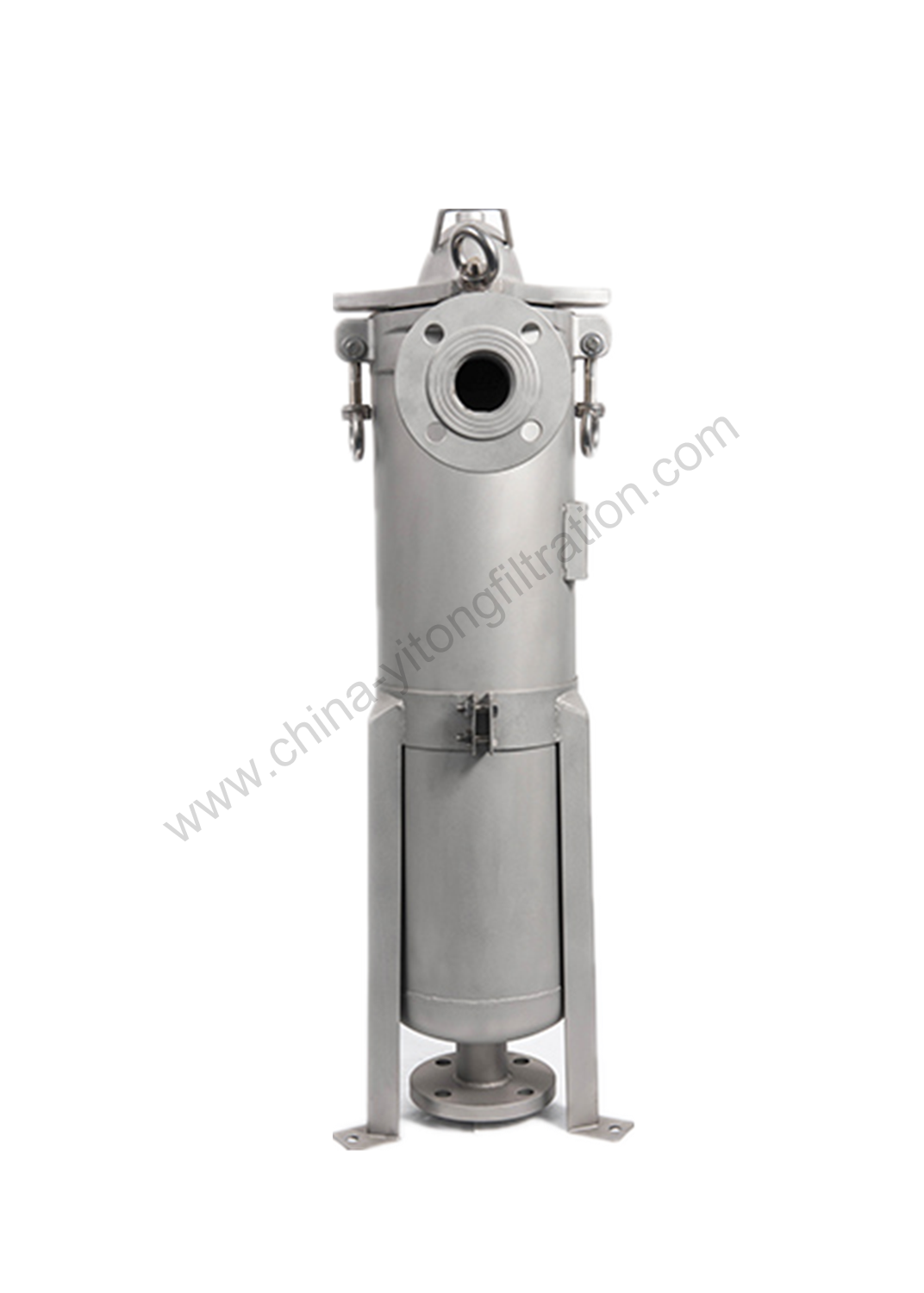

Yitong stainless steel Top Entry Bag Filter Housing is mainly used for coarse filtration and prefiltration,it is easy to operate, high effective, suitable for high flow, high capacity filtering applications. The filter bags inside the filter will be fixed well by the clamp ring, whihc provide great leakproofness.The 100% 304 or 316 stainless steel structrue makes it is corrosive-resitant, and gives a loonger service life.

Top Entry Bag Filter Housing


Product Feature

1 Easy to operate, economical, suitable for high flux situation.

2 The spring is used to press the ring of filter bag tightly, make sure the leakproofness between the filter bag and the housing

3 The upper-lower path is adopted, the feed method is reasonable, easy to operate.



Application

It is suitable for the pre-filtration and rough filtration of the fluids with a certain content of solids, usually applied in the high flow rate filtration and security filtration.


Technical Parameter

1. Surface Finish

Finish typeMechanical polishing, electrolytic polishing, sand blasting,pickling
Polishing precisionInner surface Ra≦0.6um, Outside surface Ra≦0.8um
Basket 0.6um

2. Operating Condition

Max operating pressure: 0.6 Mpa/1.0 MpaMax operating temperature: 150 ℃

3. Material

Shell/cylinder: 304/316L, SAF2507

CarbonEye-bolt: SS304

Stabilizer blade: SS304

O-Ring/Gasket: EPDM, PTFE, VITON, SILICONE

4. Connection:

Connection of shell: flange

In-outlet: flange, quick-open, screw thread

Pressure gauge: 1.5”(#1 and #2 bag)M14*1.5 female thread (#3 and #4 bag)

Vent valve: 1/4”internal screw thread

5. Dimension

Descriptioncover
#1#2
Height-mm7901110
Distance from inlet to centre-mm275
Diameter-mm204204
Height from inlet to ground-mm620940
Height from outlet to ground-mm200
In-outlet size-inch1.5”/2”
Stabilizer blade-mm550700
Max flow cbm/h 612

#1 bag: 180*430mm, #2 bag: 180*810m
