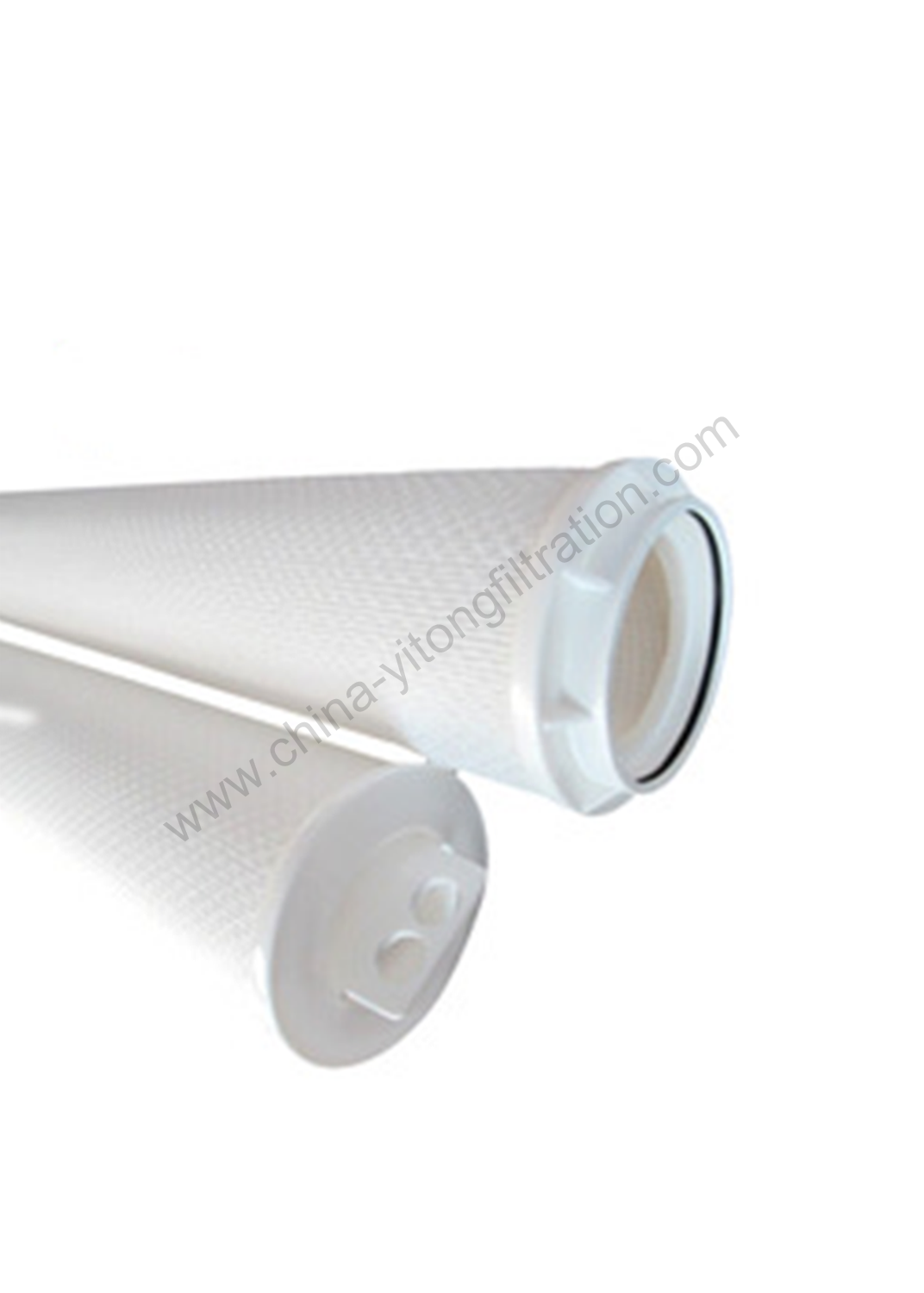

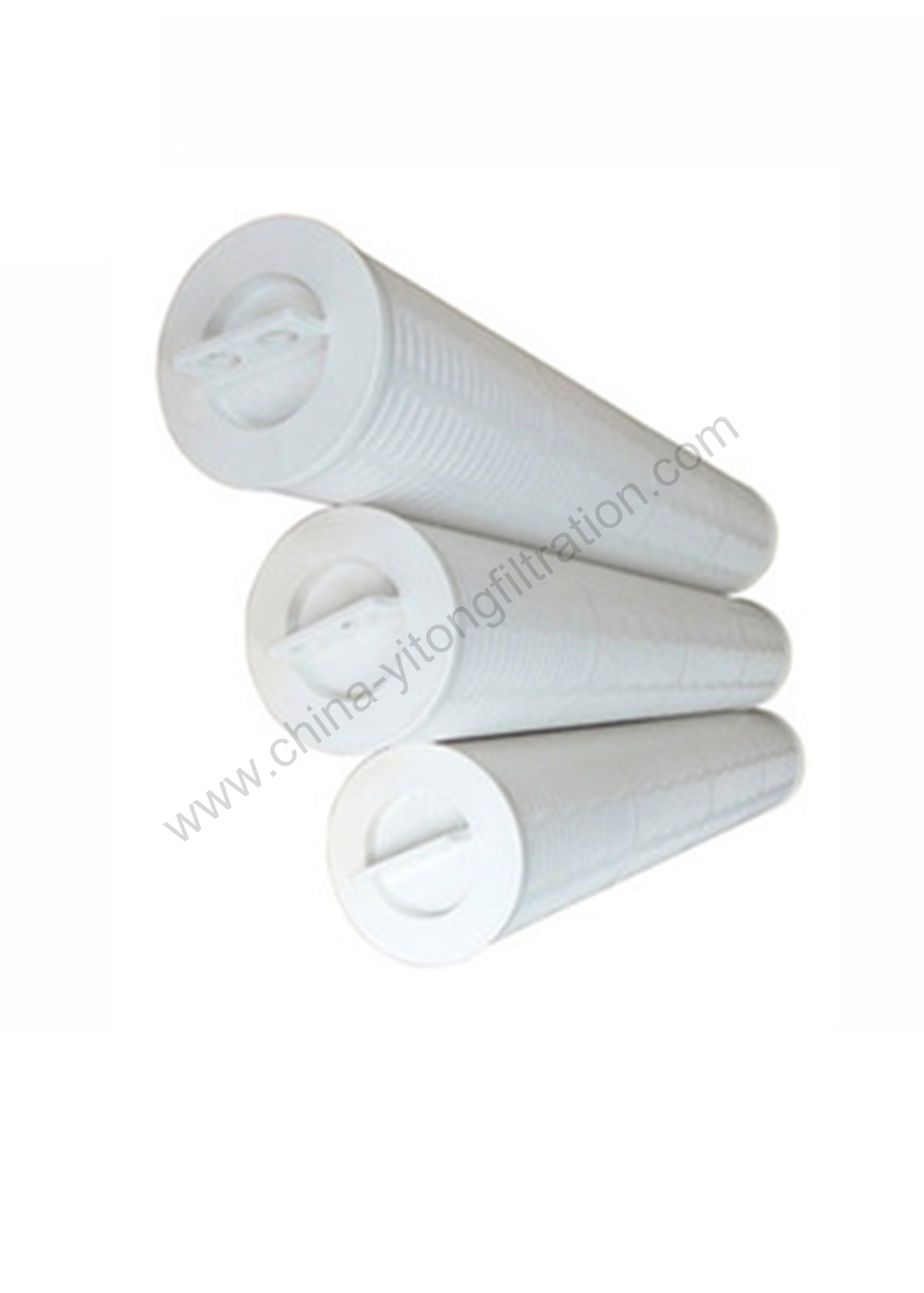

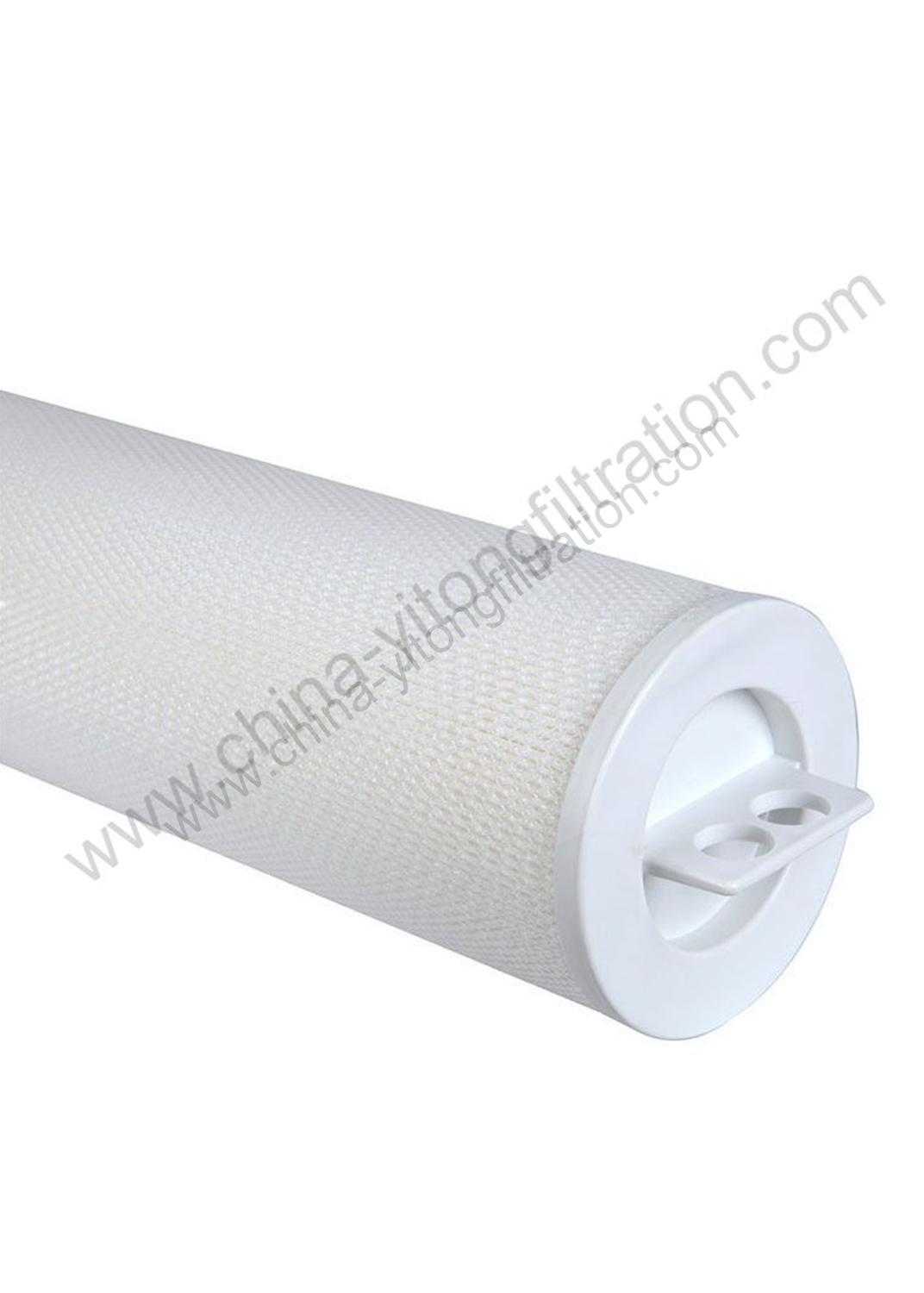

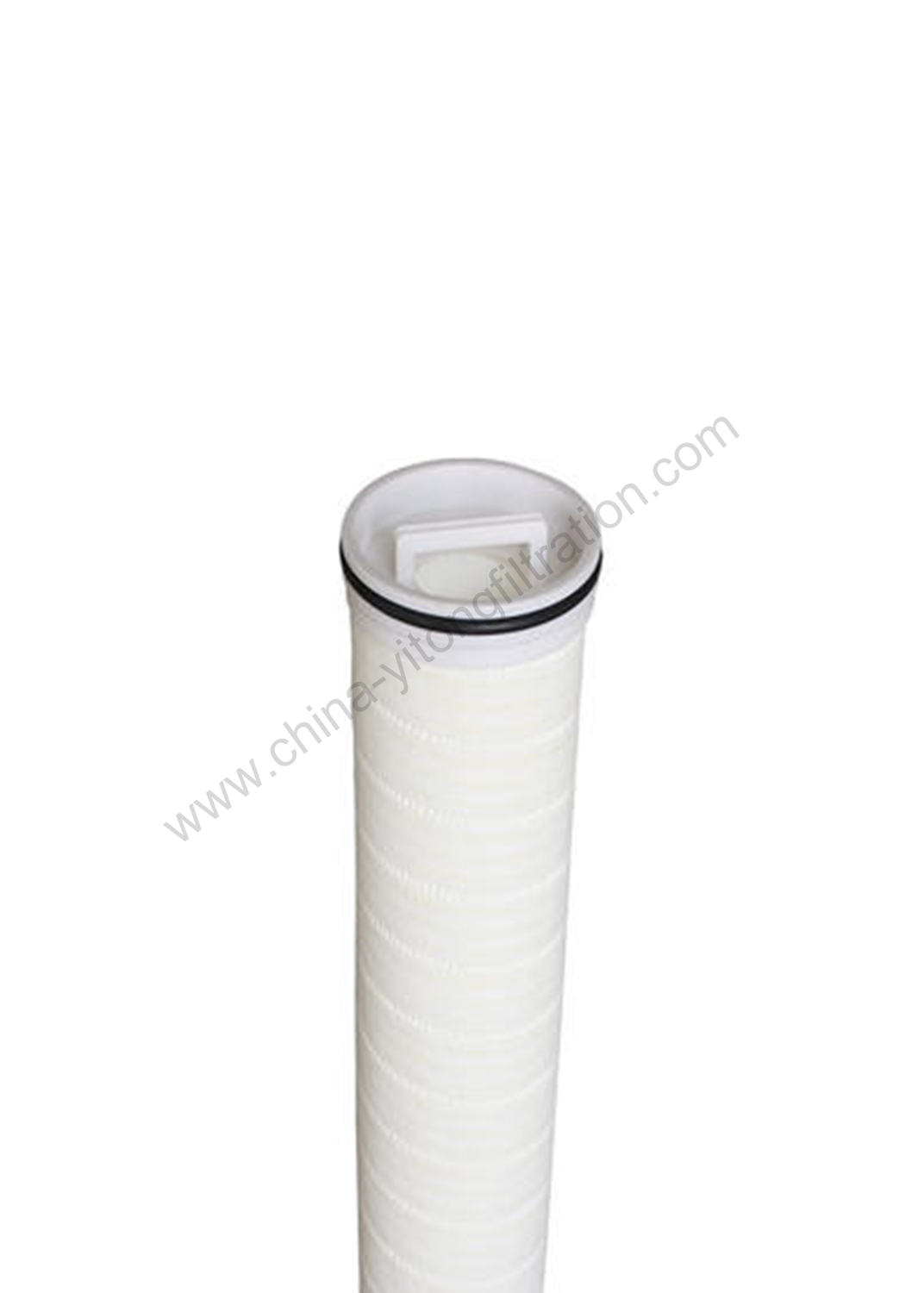

YTD83 Series Pleated High Flow Filter Cartridge

Share

YTD83 Series Ф83 high throughput filter cartridge has a variety of membrane material and filtering accuracy for you to choose.

Products Details

Pleated High Flow Filter Cartridge

Product Description

YTD83 Series Ф83 high throughput filter cartridge has a variety of membrane material and filtering accuracy for you to choose. With high flow speed, low pressure difference, wide range of chemical compatibility features. It has excellent performance in LED monitor production of water usage filtration, during the production process of wet conditions. Such as the bottom board cleaning, the rigid, DI water flushing, etc., the water flow volume can reach 100L/min.

YTD83 Series Pleated High Flow Filter Cartridge

Product Features

1. Many membrane material and filtration accuracy to choose.

2. Large filtration area, long service life.

3. High flow volume, low pressure difference.

4. Low filtration cost.


Application

1.  Solvents and chemical raw materials

2.  Ink and paint

3.  High purity solution in electronics industry

4.  High temperature liquid.



Technical parameter

Filter cartridge structureFilter area≥1.3㎡/10 inches
Filter membranePP、PES、PTFE
Guide layerPP
Inner support、end cap、shellPP
Seal ring materialSilicone rubber、Viton、EPDM、PTFE
Working situationWorking temperature≤90℃
Maximum working pressure difference0.4Mpa/23℃


Product type guide

YTD83Filter AccuracyLengthConnection TypeSeal ring material

0010=0.1μm05=5"2=222S=Silicone rubber

0022=0.22μm10=10"6=226E=EPDM

0045=0.45μm20=20"15=215P=PTFE

0100=1μm30=30"DOE/SOE=Flat head with gasketV=Viton


40=40"
