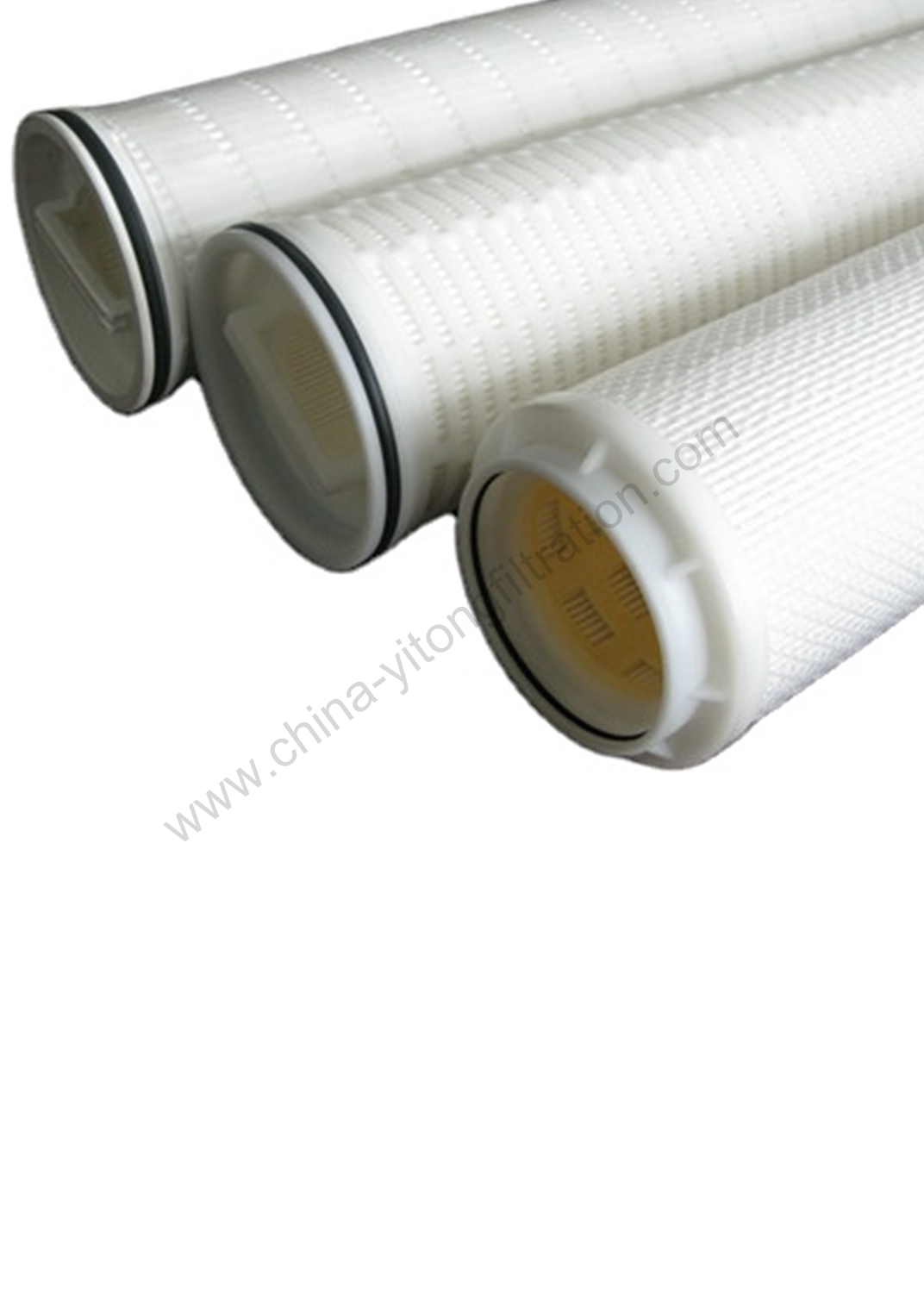

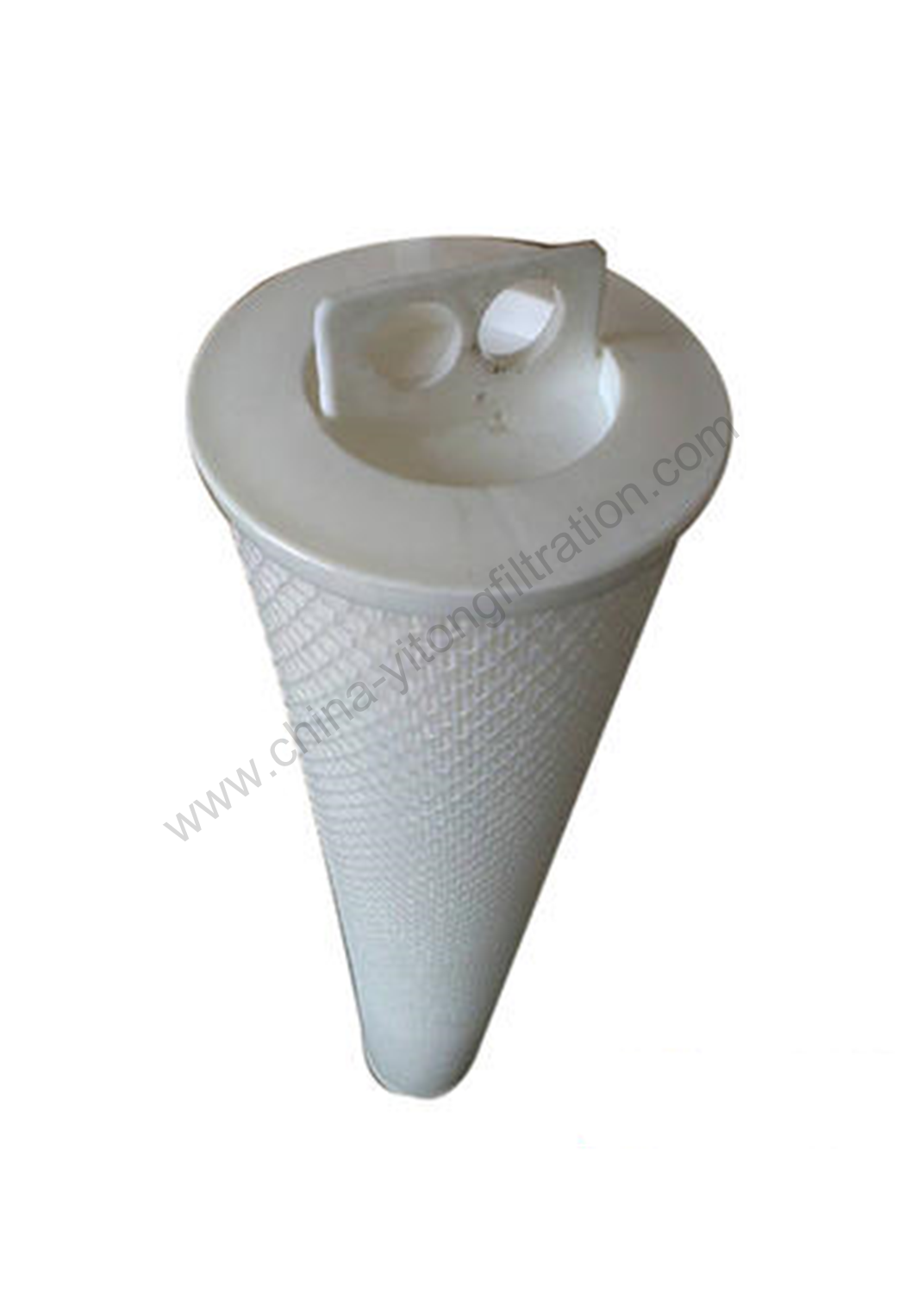

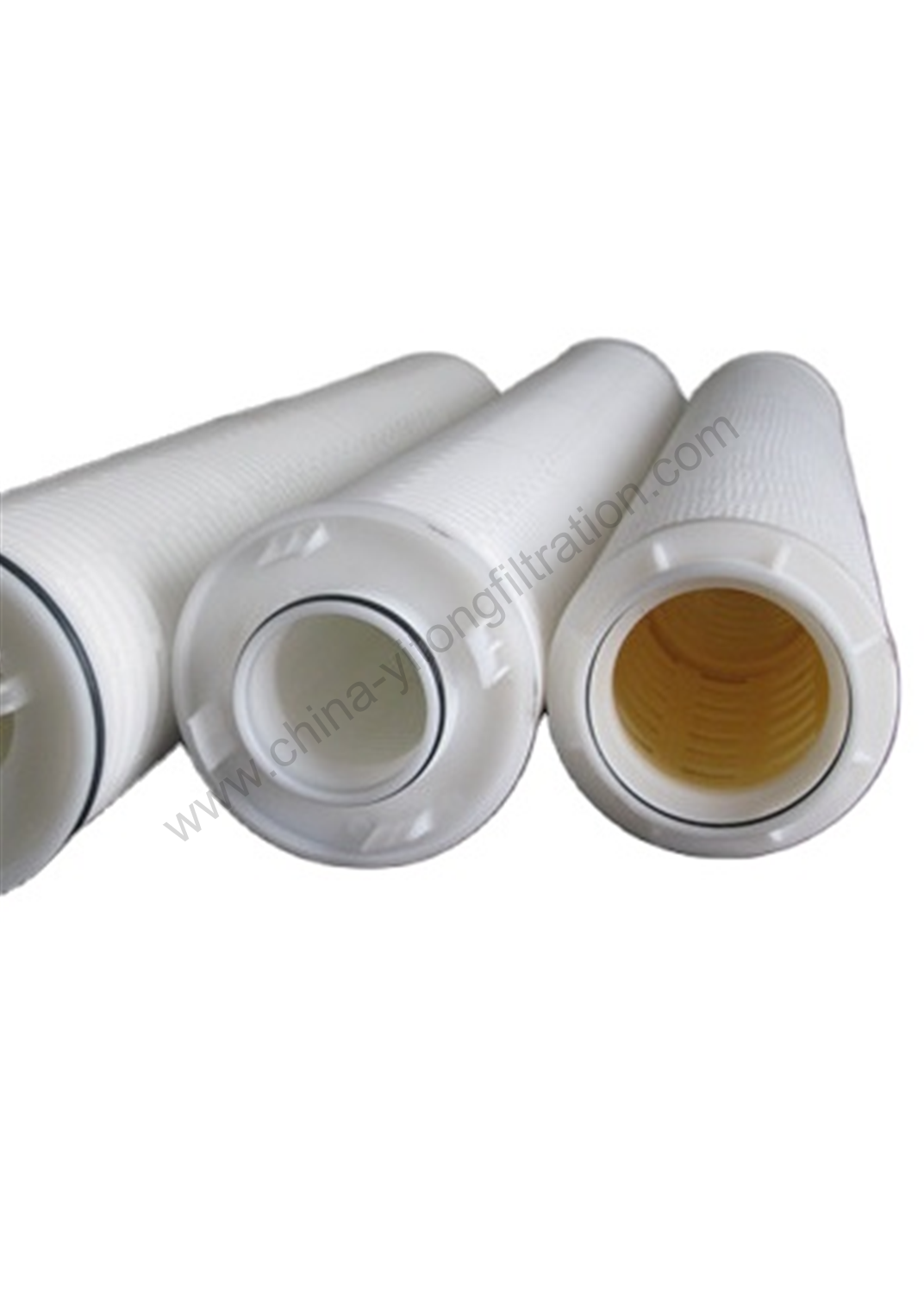

YTD131 Series Ф131 high pass volume filter cartridge has a variety of membrane material and filtering accuracy for you to choose.
YTD131 Series Ф131 high pass volume filter cartridge has a variety of membrane material and filtering accuracy for you to choose. With high flow speed, low pressure difference, wide range of chemical compatibility features, it has excellent performance in LED monitor production of water filtration, and during the production process of wet conditions. Such as the bottom board cleaning, the rigid, DI water flushing, etc., the water flow volume can reach 200L/min.
1. Many membrane material and filtration accuracy to choose.
2. Large filtration area, long service life.
3. High flow volume, low pressure difference.
4. Low filtration cost.
1. Solvents and chemical raw materials
2. Ink and paint
3. High purity solution in electronics industry
4. High temperature liquid.
| Filter cartridge structure | filter area | ≥2.3㎡/10 inches |
| filter membrane | PP、PES、PTFE | |
| guide layer | PP | |
| inner support、end cap、shell | PP | |
| seal ring material | Silicone rubber、Viton、EPDM、PTFE | |
| Working situation | working temperature | ≤90℃ |
| Maximum working pressure difference | 0.4Mpa/23℃ |
Product Type Guide
| YTD131 | Filter Accuracy | Length | Connection Type | Seal Ring Material |
| 0010=0.1μm | 05=5" | 2=222 | S=Silicone rubber | |
| 0022=0.22μm | 10=10" | 6=226 | E=EPDM | |
| 0045=0.45μm | 20=20" | 15=215 | P=PTFE | |
| 0100=1μm | 30=30" | DOE/SOE=Flat head with gasket | V=Viton | |
| 40=40" |
