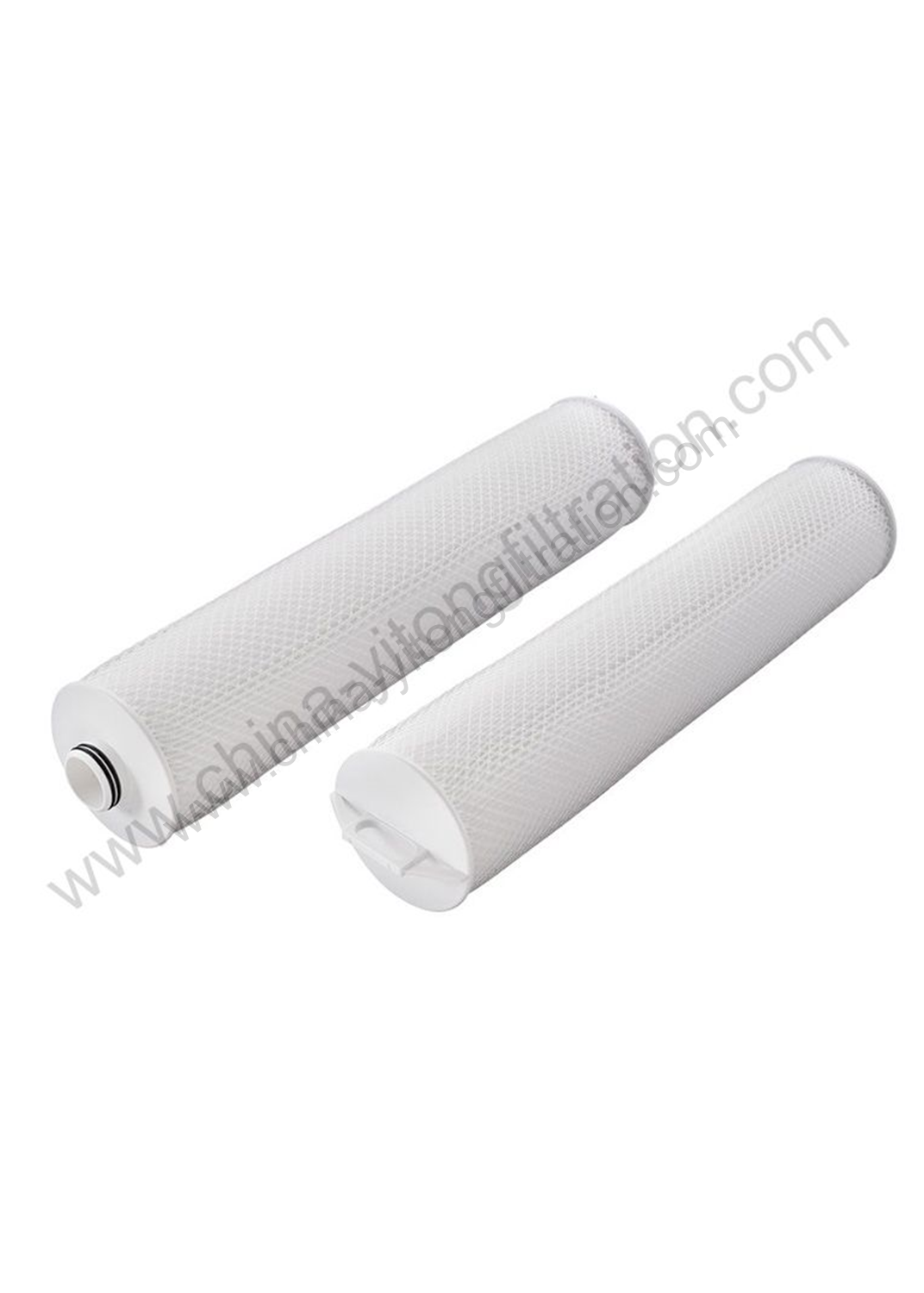

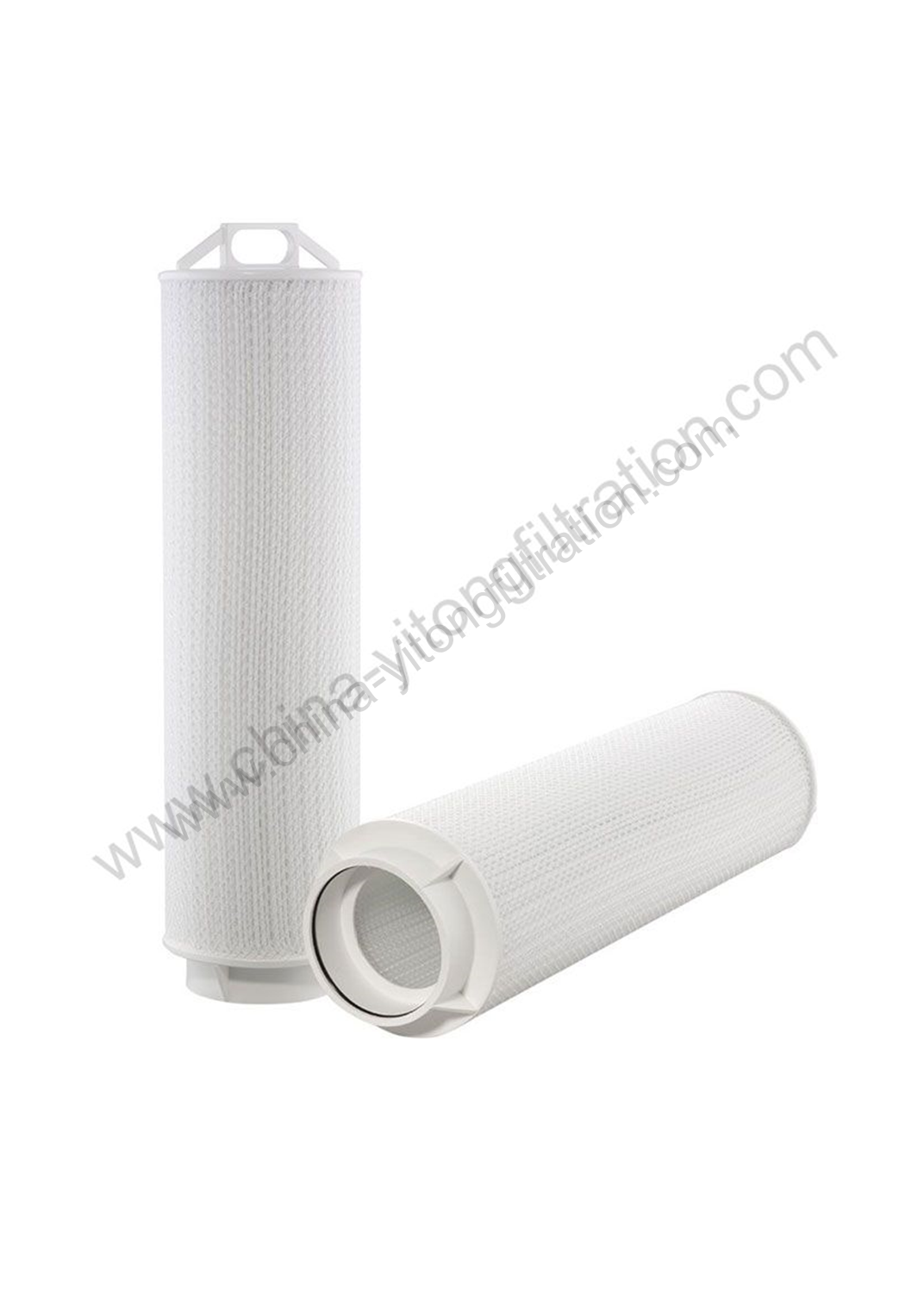

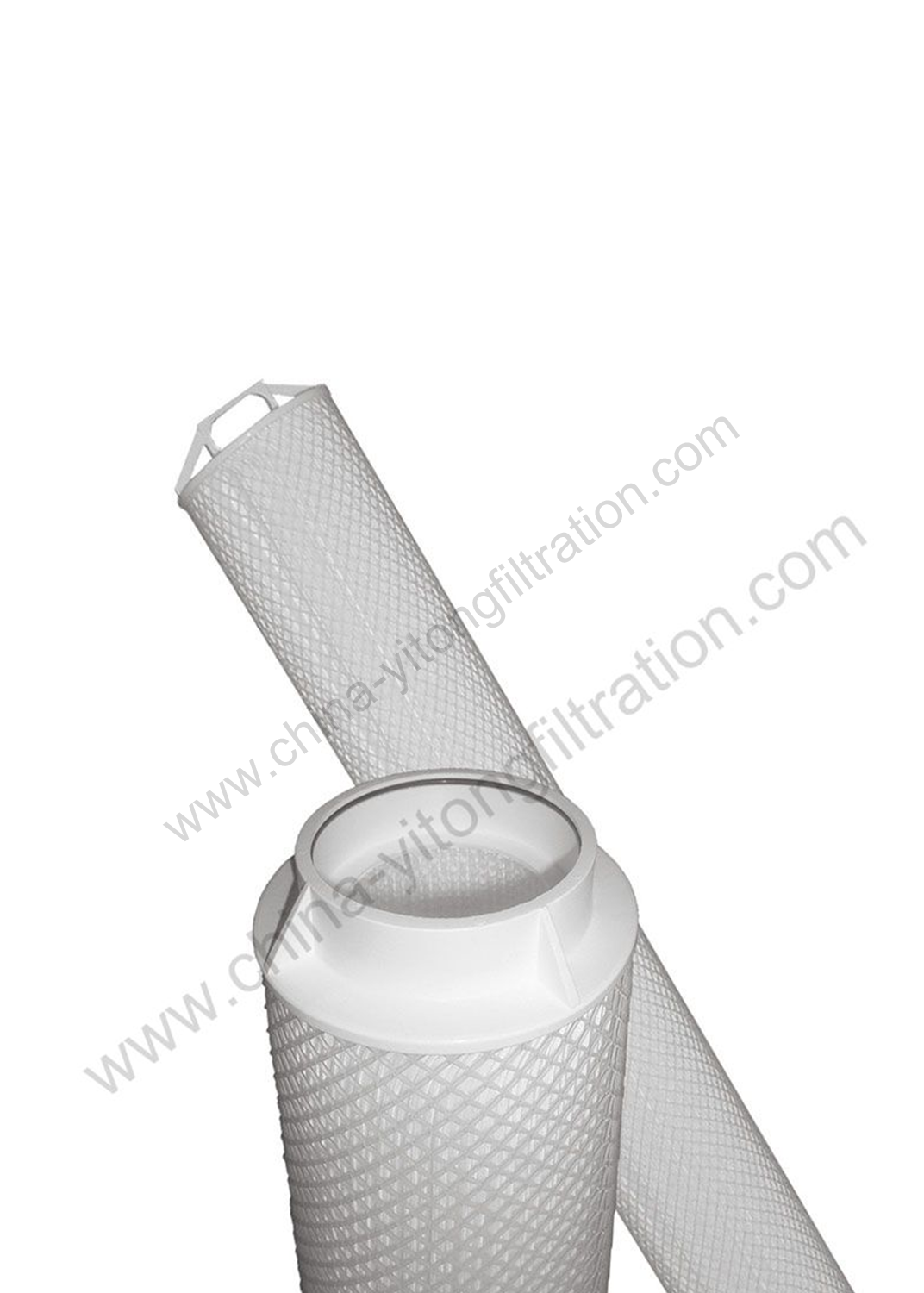

YTHF152 High Flow Filter Cartridge

Products Details

Product Description

YITONG high flow rate filter element replaces Parker brand, which adopts double apron large flow water filter element with 6"(152.4mm) large diameter structure and pleated form. The inner support uses high strength polypropylene. The liquid flow direction is from outside to inside, and the outer support is monolithic polypropylene framework and polyester filter mesh. The special structure enables it has larger filtration area than the common pleated filter element. Therefore, it has larger filtration flow and longer service life when filtering high purity reagents. It is especially suitable for the filtration of high purity water.

Product Characteristics

1 The filter element uses hydrophilic membrane material, which can be directly used without pre-wetting, thus greatly saving operation time and reducing cost.

2 Integral skeleton with advantages of large filtration area, long service life, high strength, stable size and low leakage risk

3 Ultra-long filter element 6"(152.4mm) suitable for large flow and high pollution acceptance applications.

4 Simple system, no acid and alkali consumption and pollution of regenerated acid and alkali wastes

5 High mechanical performance, even in harsh technological conditions will not deform

6 It can be installed in the existing shell without replacement or modification.

7 The filter material is safe and clean, which meets the requirements of FDA.

Technical Parameters

1 Filter media: polypropylene fiber membrane

2 Upstream and downstream support material: polypropylene

3 Supporting frame and structural components: polypropylene

4 Pore size: 1um, 5um, 10um, 20um, 50um, etc.

5 The length of filter element: 10 ", 20", 30 ", 40", 60', etc.

6 Sealing materials: silicone rubber, butadiene rubber, EPDM, fluorine rubber

7 Closed mode: hot melt welding

8 Maximum operating temperature: 80 C, 0.28 MPa

9 Maximum positive pressure difference: 0.42 MPa (25 C)

10 Maximum replacement pressure difference: 0.28 MPa (25 C)


1 Filtration of condensed water in power plants;

2 Pharmaceutical raw materials, solvents and water treatment in the bio-pharmaceutical industry;

3 RO security filtration, seawater desalination pretreatment;

4 Paint, ink, paint, petrochemical industry.

5 Advantages of Parker filter element

6 The filter element has compact, uniform pore size and high filtration accuracy.

7 Small filtration resistance and large flow rate. Deep filtration, filter element has large contamination capacity and long service life.

8 Intensity. With PP skeleton support, it can withstand pressure difference up to 0.3 Mpa without deformation.

9 Chemical corrosion resistance of acid, alkali and organic solvents.
