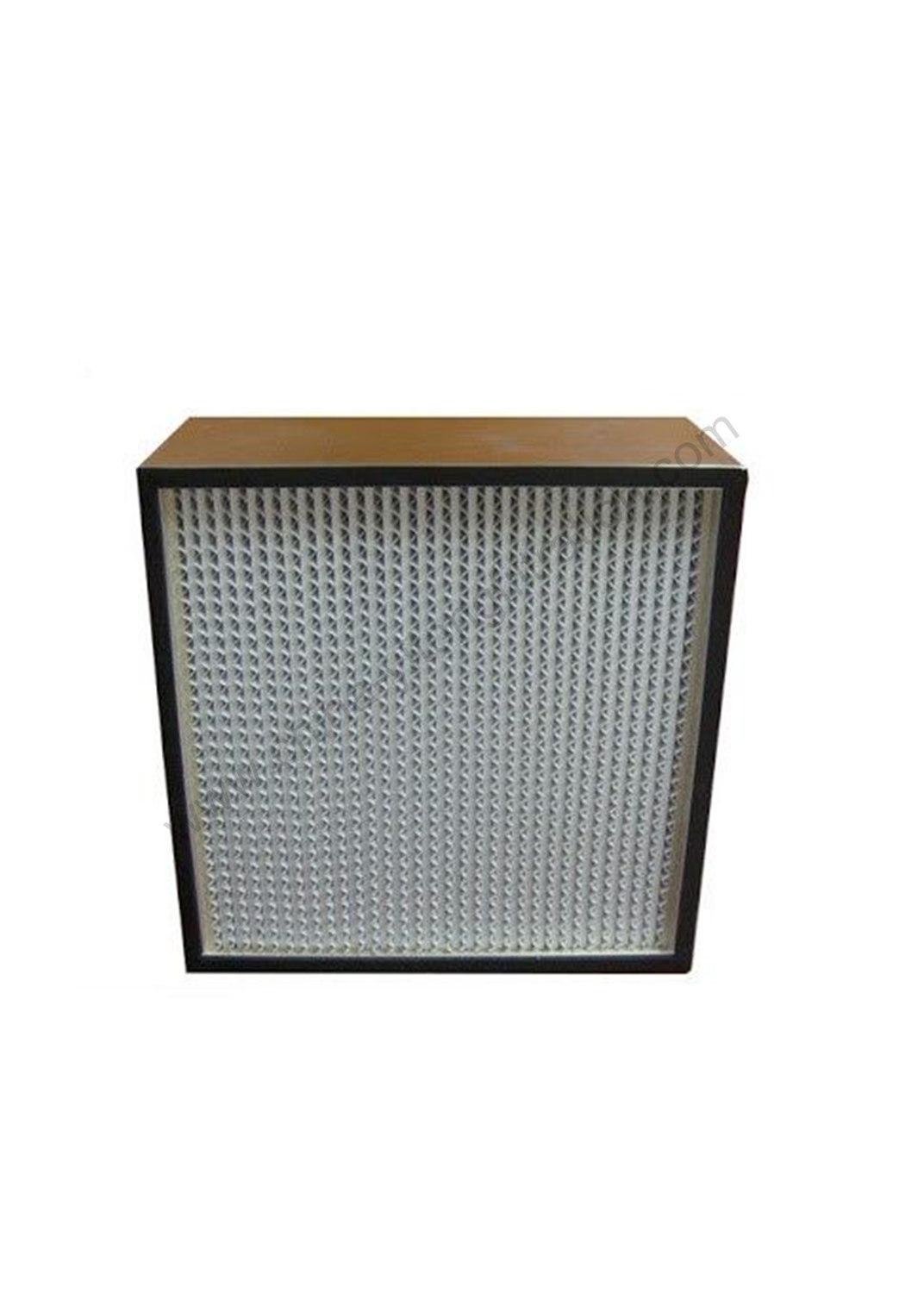

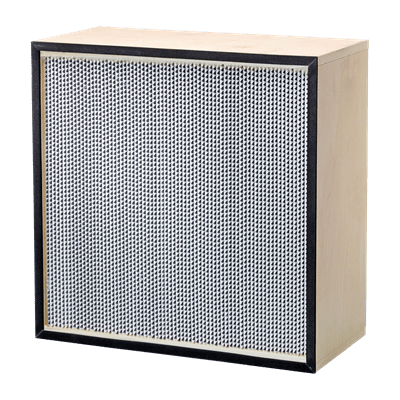

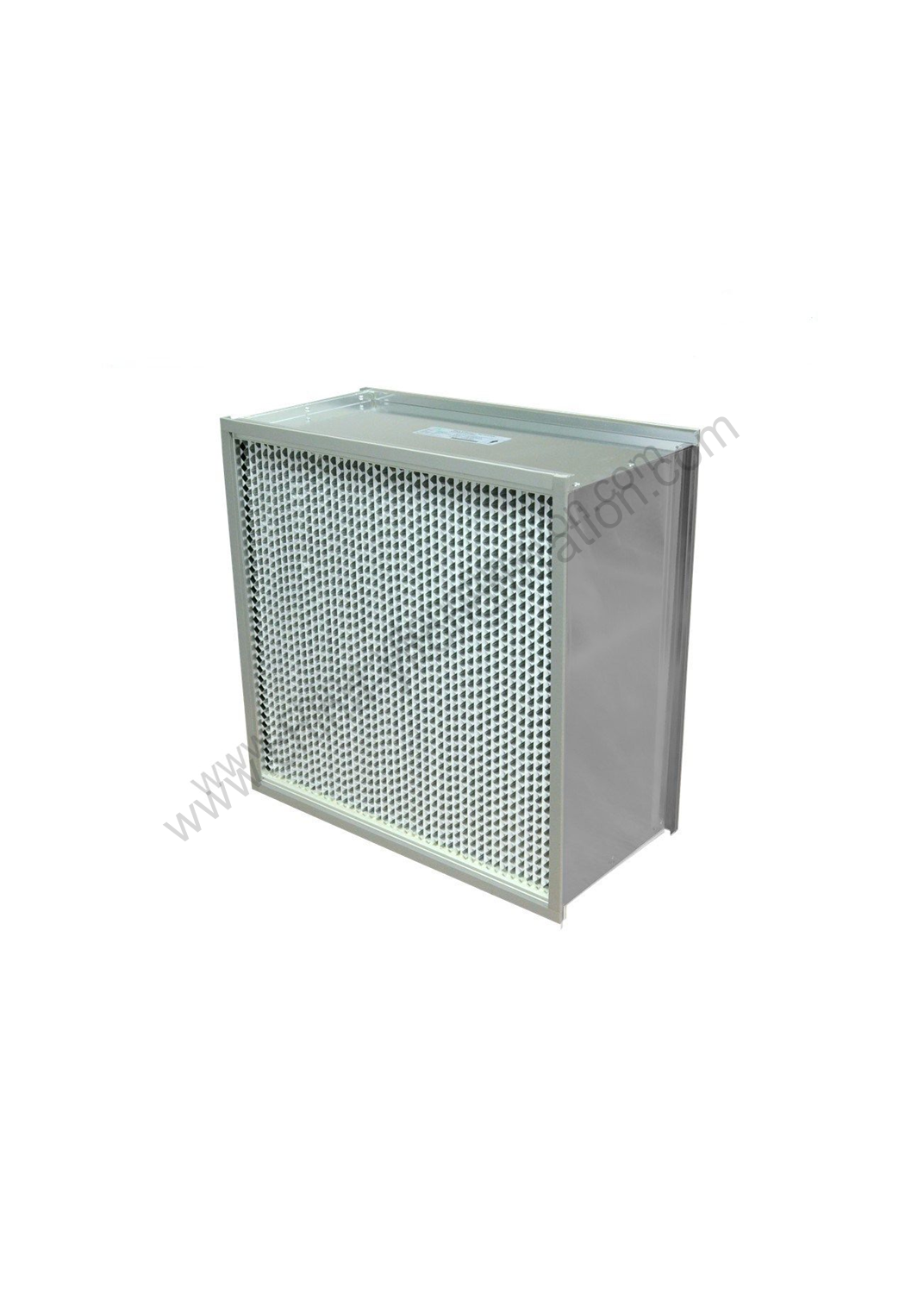

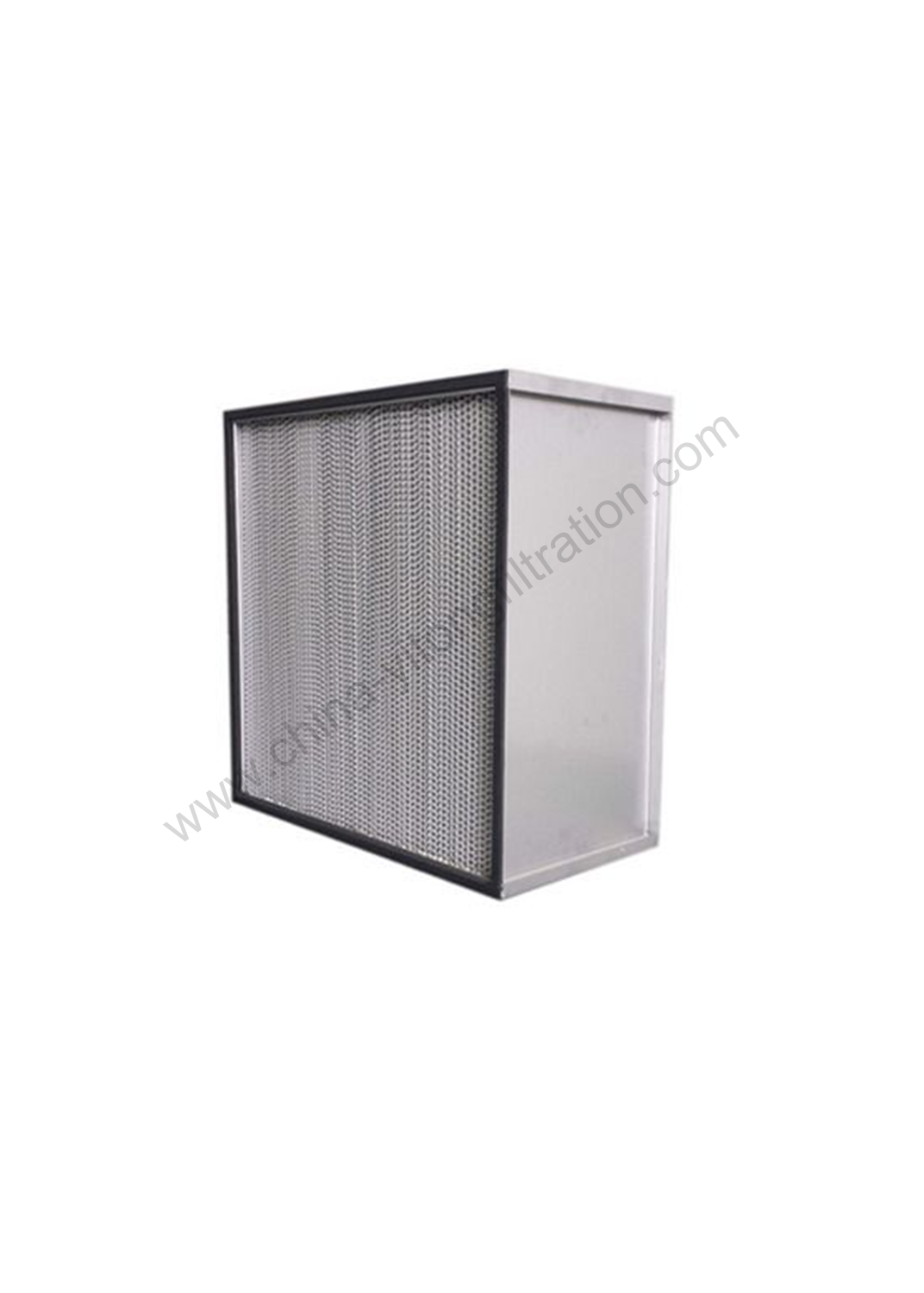

YTG Series— HEPA Separator Filter

Share
Products Details

Product Description

The HEPA separator filter adopts ultra-fine glass fiber filter paper as the filter material, and is folded by rubber paper, aluminum foil board and other materials, sealed by new polyurethane sealant, and the galvanized plate, stainless steel plate, aluminum alloy profile is the outer frame. Mainly used for air suspended particles below 0.3um, as the end of various filtration systems.

YTG series— HEPA Separator Filter

Product Feature

1. High quality glass fiber filter paper, stable performance.

2. Double-sided plastic protection net.

3. 100% scan test before delivery.

4. Framework: aluminum alloy.

5. Segment material: thermosol.

6. Sealing type: polyurethane sealing strip


Application

It is widely used in the end filtration of civil or industrial clean factories with high cleanliness requirements in electronics factories, semiconductors, precision machinery, pharmaceuticals, hospitals, food and other industries.


Technical Parameter

Dimension(mm)Filtration efficiencyPrimal resistance(Pa)Rated air volume(m³/h)
320*320*220H13、H14≤220500
610*610*150H13、H14≤2201000
484*484*220H13、H14≤2201000
910*610*150H13、H14≤2201500
630*630*220H13、H14≤2201500
968*484*220H13、H14≤2201500
1260*630*220H13、H14≤2203000
Note: the above dimensions are normal size, which can be customerized according to requests and drawings.
