Medium Efficiency Panel Air Filter

Share
Products Details

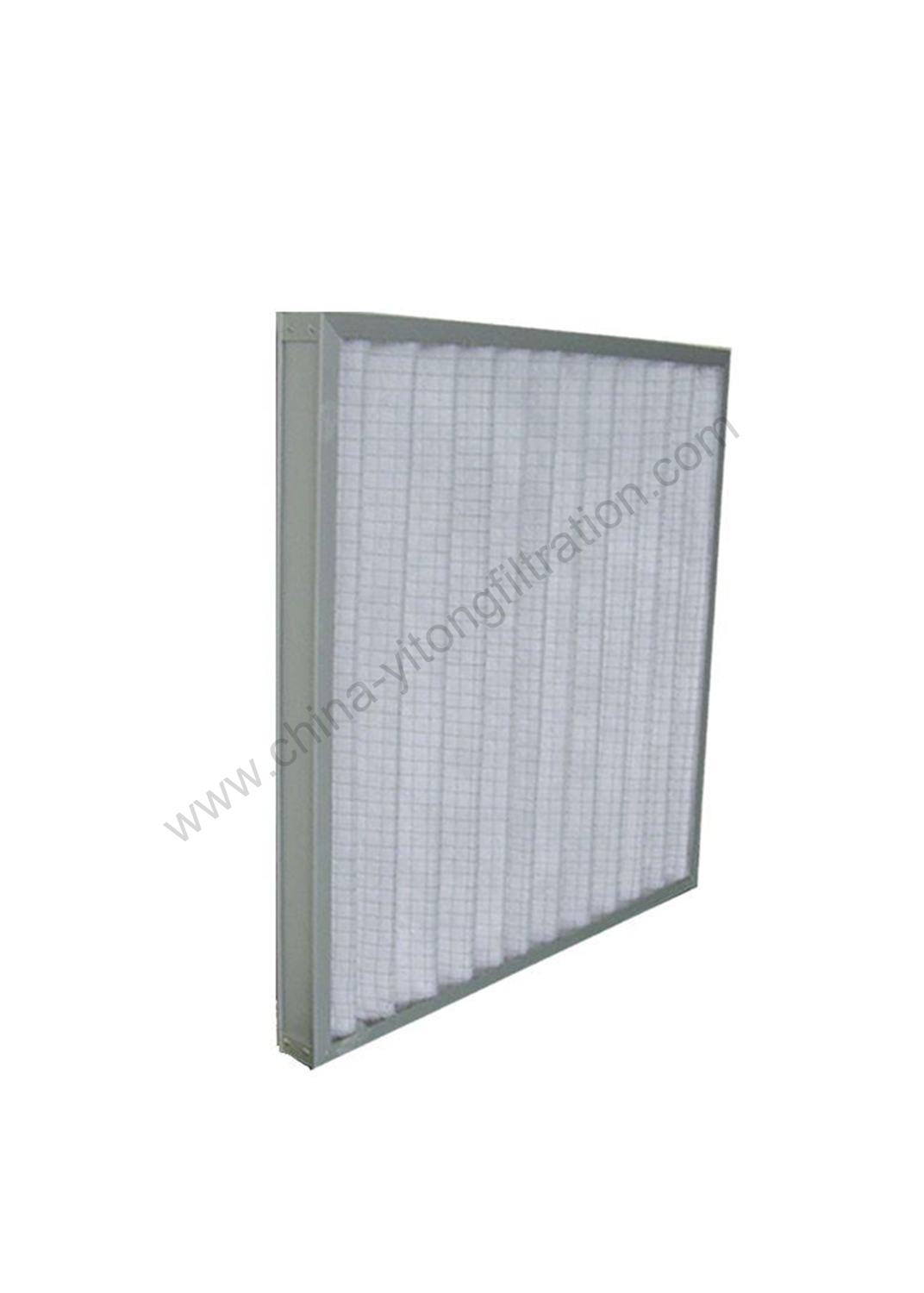

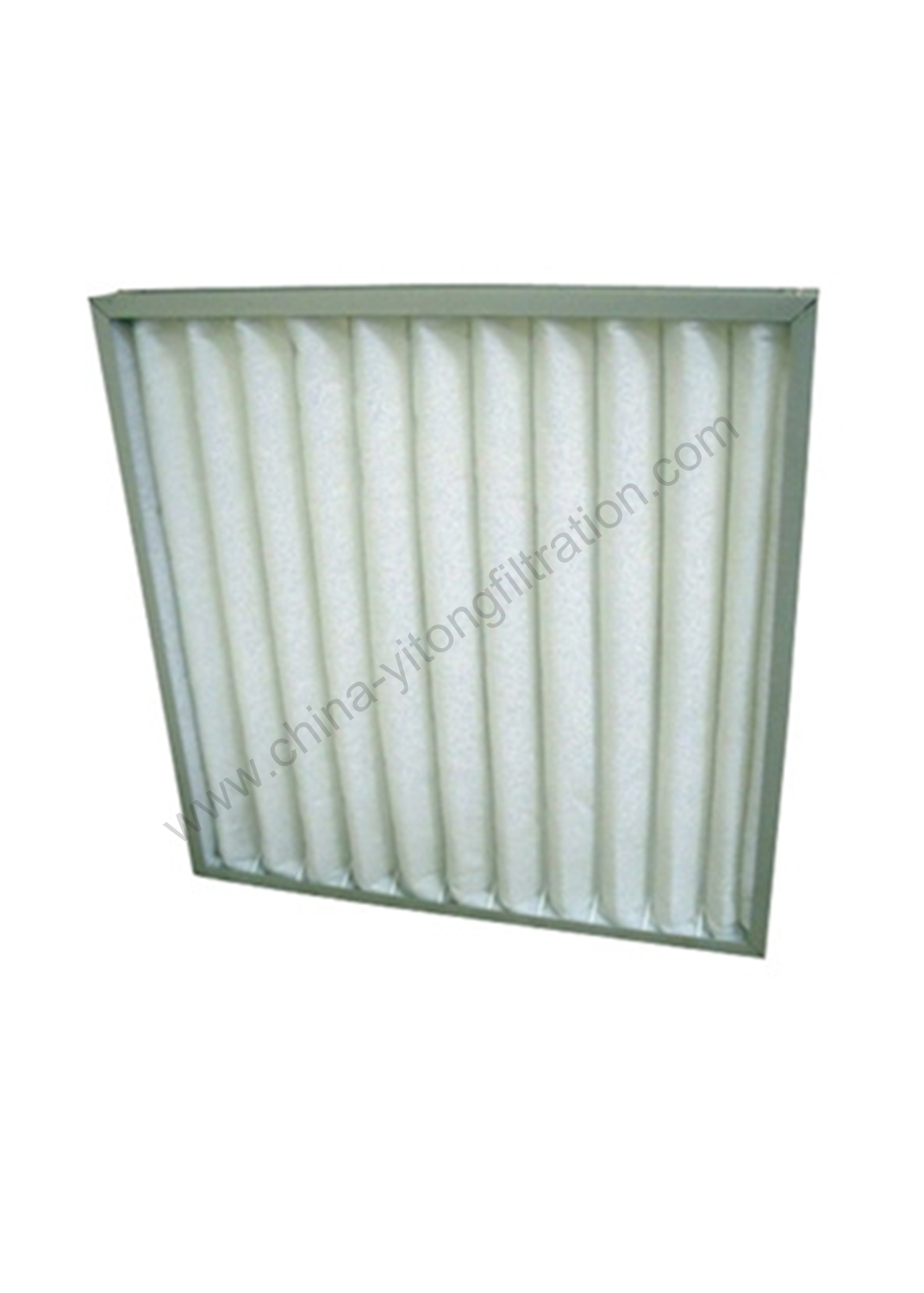

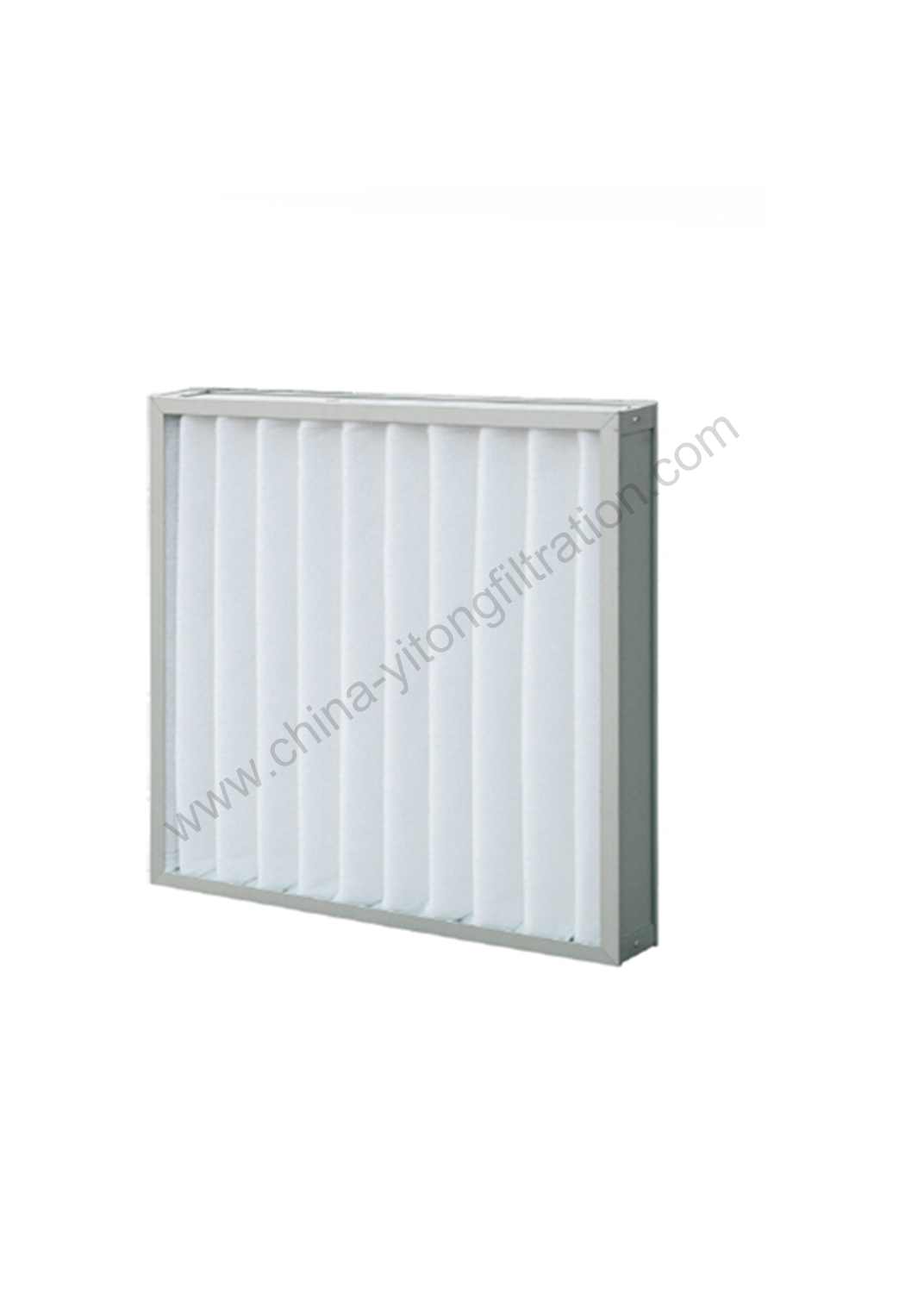

Panel Air Filter

Product Description

The plate-type medium-efficiency filter is one of the medium-efficiency filters. It is sealed by the special glue of the aluminum alloy frame and the non-woven filter material, and can be manufactured according to different specifications.

Product Feature

1. Large air volume and low resistance.

2. The structure is sturdy and can be cleaned repeatedly.


Application

It is mainly used in central filtration of central air conditioning and ventilation systems, pharmaceutical, hospital, electronics, food, and other industrial purification; it can also be used as high-efficiency front-end filtration to reduce the load of efficient filtration and extend its service life.


Technical Parameter


Filtration effectivenessSize(mm)Rated air volume(m³/h)Initial resistance(≤Pa)Final resistance(≤Pa)Filtering area(㎡)
F5592*592*4663050250-3000.97
F6592*592*4663065250-3000.97
F7592*592*4663080300-4000.97
F8592*592*46630105300-4000.97
F9592*592*46630120400-4500.97
