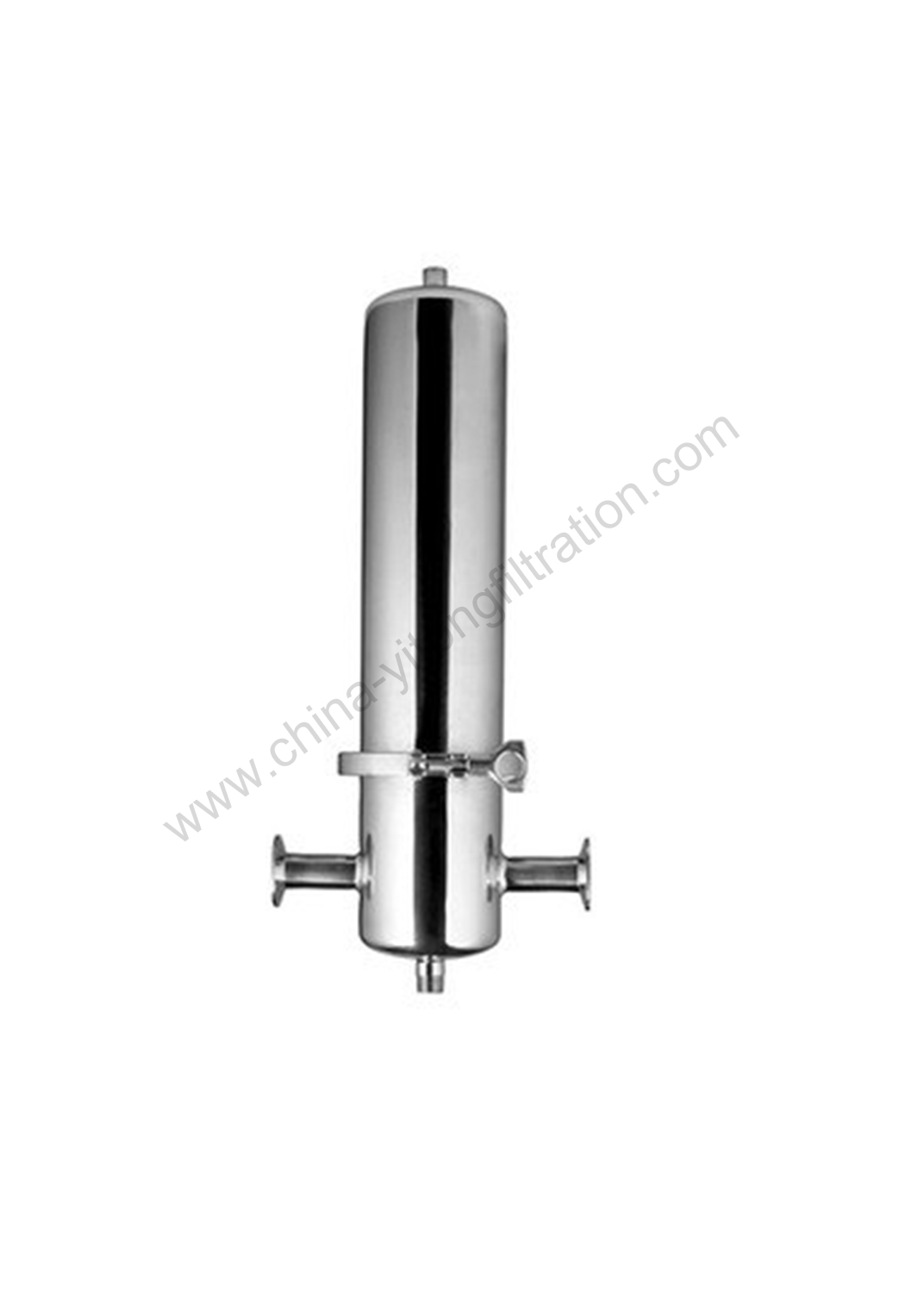

  • Gas Filter Housing

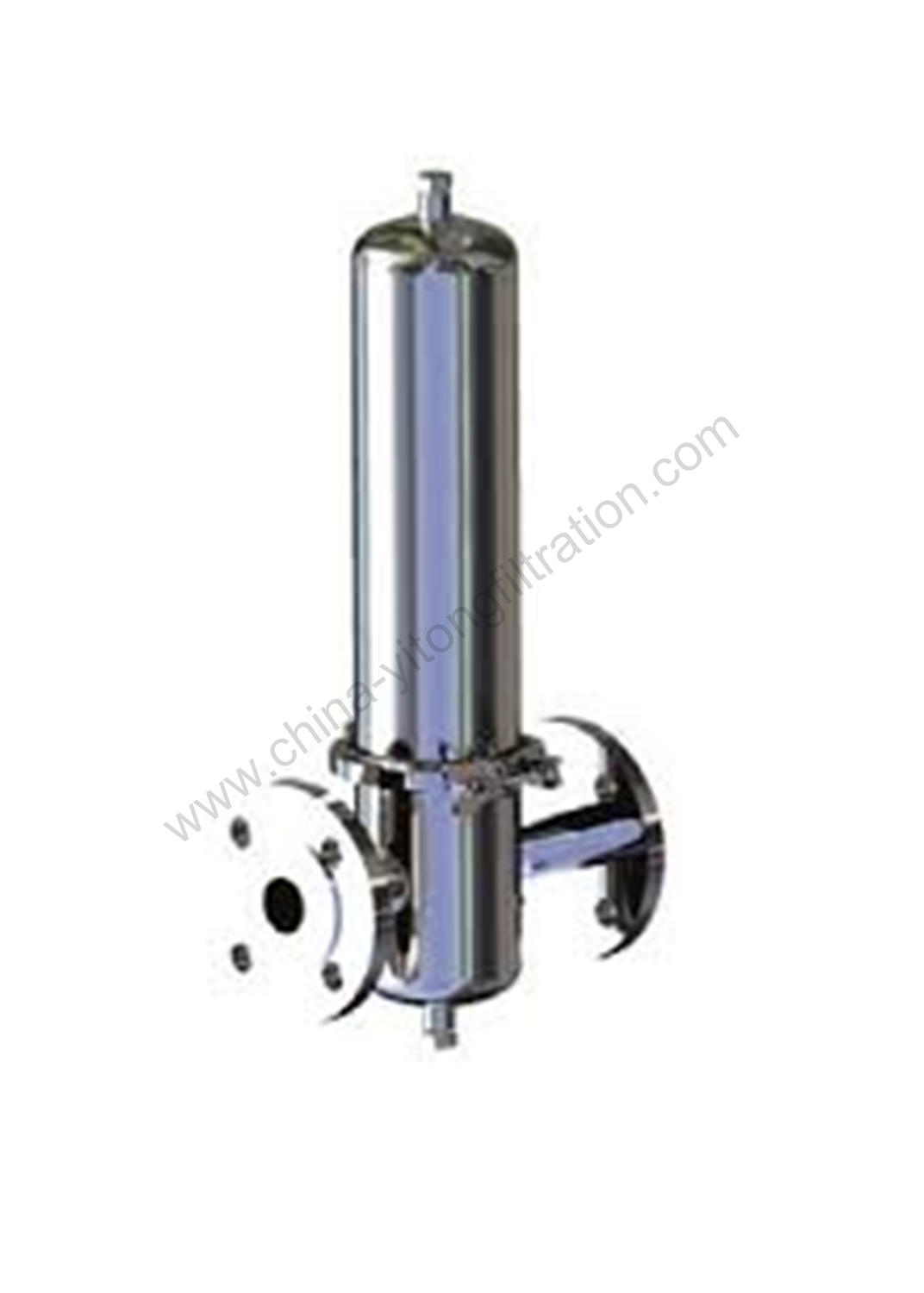

  • Gas Filter Housing

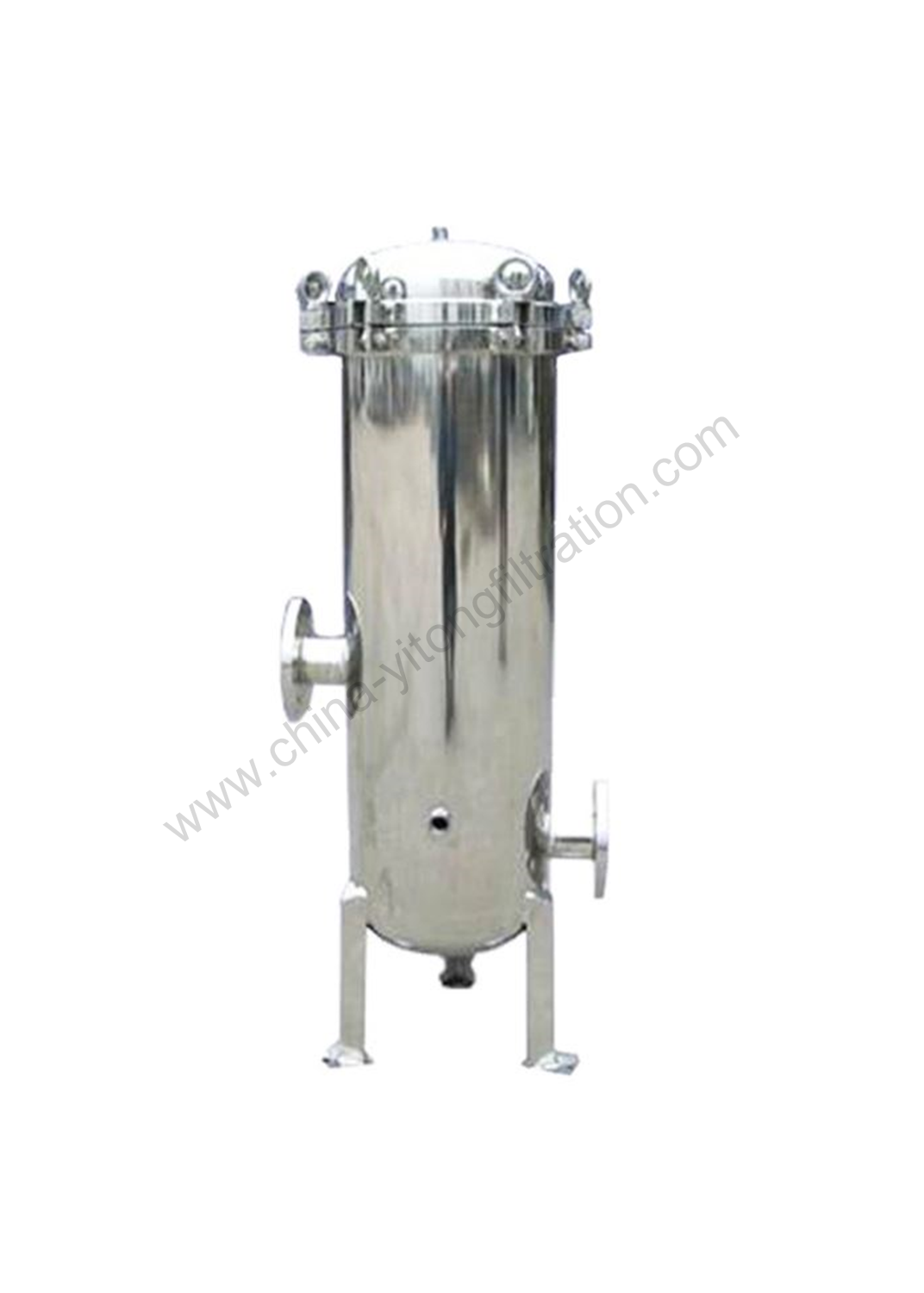

  • Gas Filter Housing

Gas Filter Housing

Share

Gas/steam filter housing matches with filter cartridge for particle removal in high purity gas. The filter housing with PTFE filter efficient aseptic filter element is used in sterile gas and fermentation gas filtration

Products Details

Gas Filter Housing

Product Description

Gas/steam filter housing matches with filter cartridge for particle removal in high purity gas. The filter housing with PTFE filter efficient aseptic filter element is used in sterile gas and fermentation gas filtration; with glass fiber filter element, is used in high purity gas filtration; with stainless steel or metal filter cartridge, is used in high temperature steam filtration. The connection is unified as code 226 double sealing clamp to guarantee the outstanding sealing performance.

Gas Filter Housing

Product Feature

1. The connection adopts 226 double sealing clamp

2. The connection can be quick-open when the cartridge number is less than three.


Application

1. Sterilization for the biotechnology and pharmaceutical.

2. Sterilizing for the beverage and food, filtering steam for the heating food.

3. Filtering dampness in laboratory such as electronics industry, biotechnology, .


Operation Condition

Max. pressure0.6/1.0 Mpa
Max. temperature150℃
Sterilization121℃/30minute online

Material

Shell304/316L
Drain valve304/316L
O-ringEPDM, PTFE, VITON, SILICONE.

Connection

Connection of shellFlange/tri-clamp
Inlet/outletFlange/tri-clamp/thread
Pressure gaugeM14*1.5" thread(less than 3 cores)1/2" thread(less than 5 cores)
Drain valve1/4" thread
Cartridge adaptor222/226

Surface Treatment

Finish typeMechanical polishing/eletrolytical polishing
Polishing precisionInner surface 0.3um Ra≦0.6umOuter surface 0.4um Ra≦0.8um
