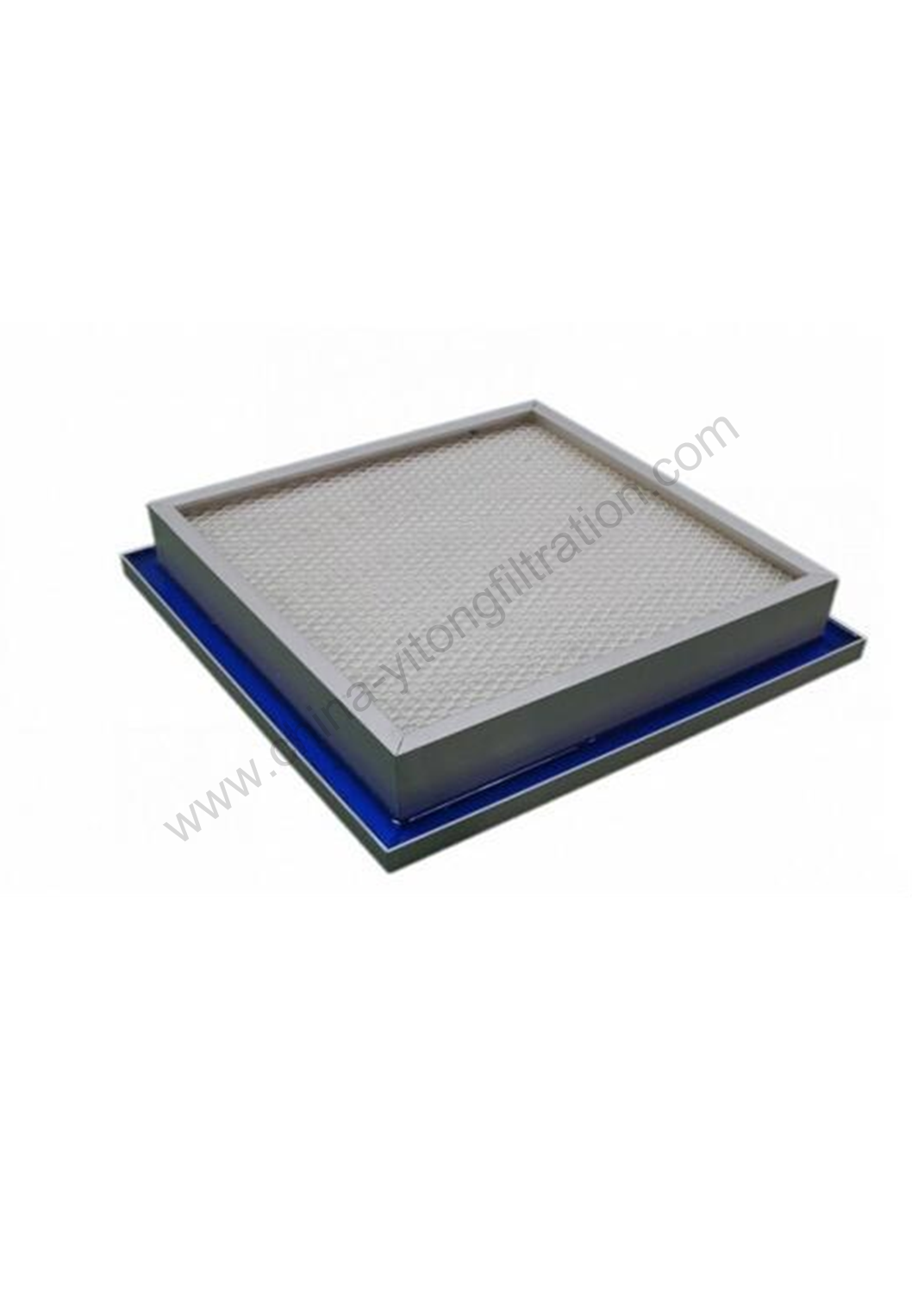

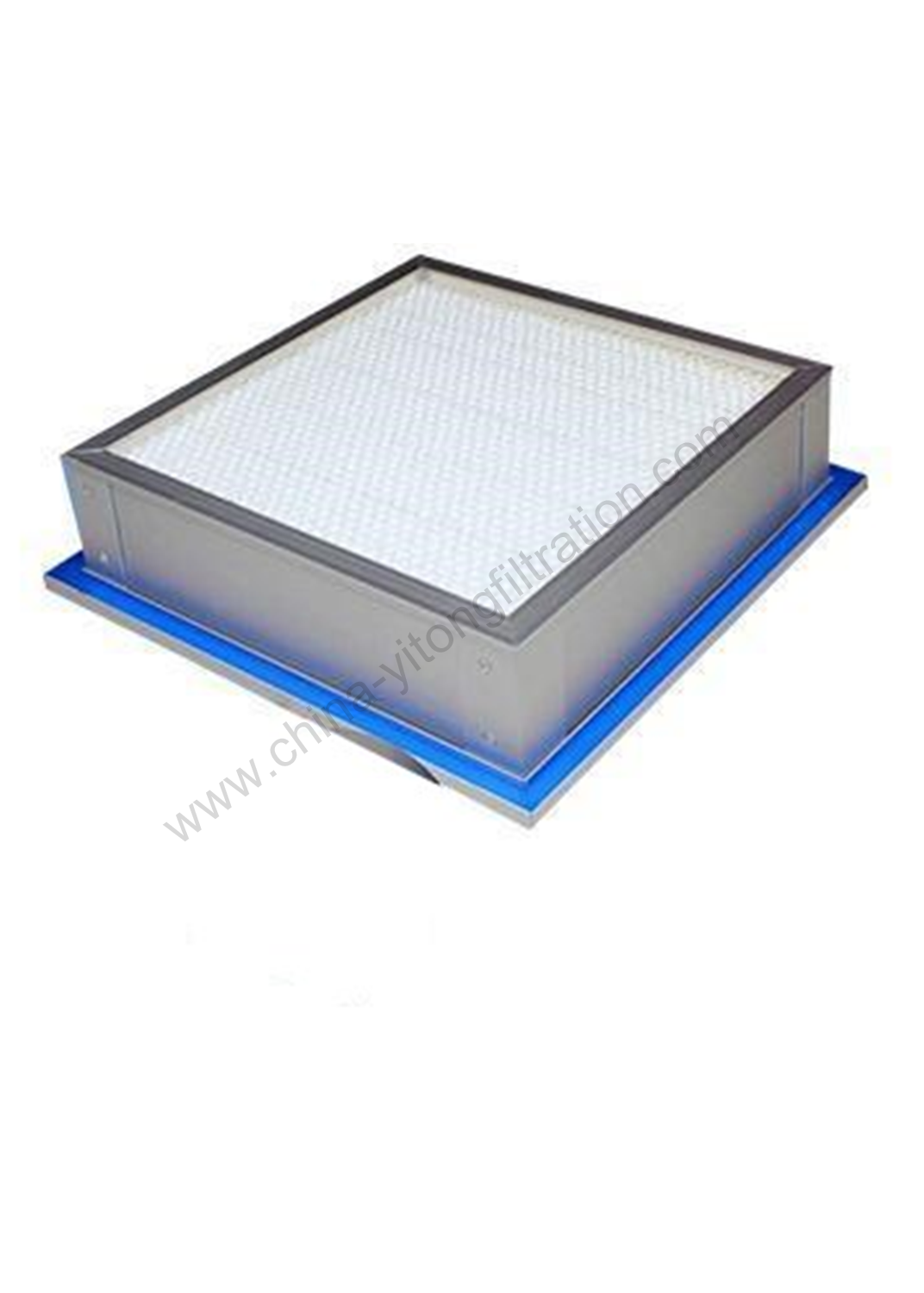

YTYG Series—Liquid Groove Seal High Efficiency Filter

Share
Products Details

Product Description

YTYG series liquid groove seal high efficiency filter includes upper and side groove seal two types. Mainly applying and wholesale in air supply of high grade cleanliness plant, such as pharmacy, medical, food, electronic and other industries. Convenient installation, good seal performance.

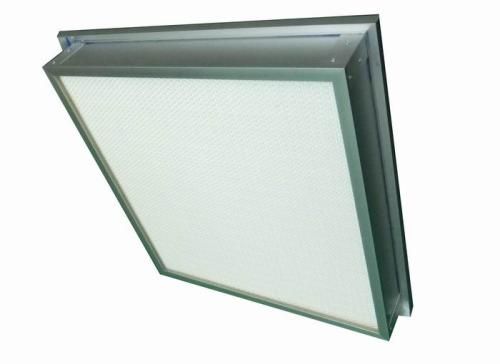

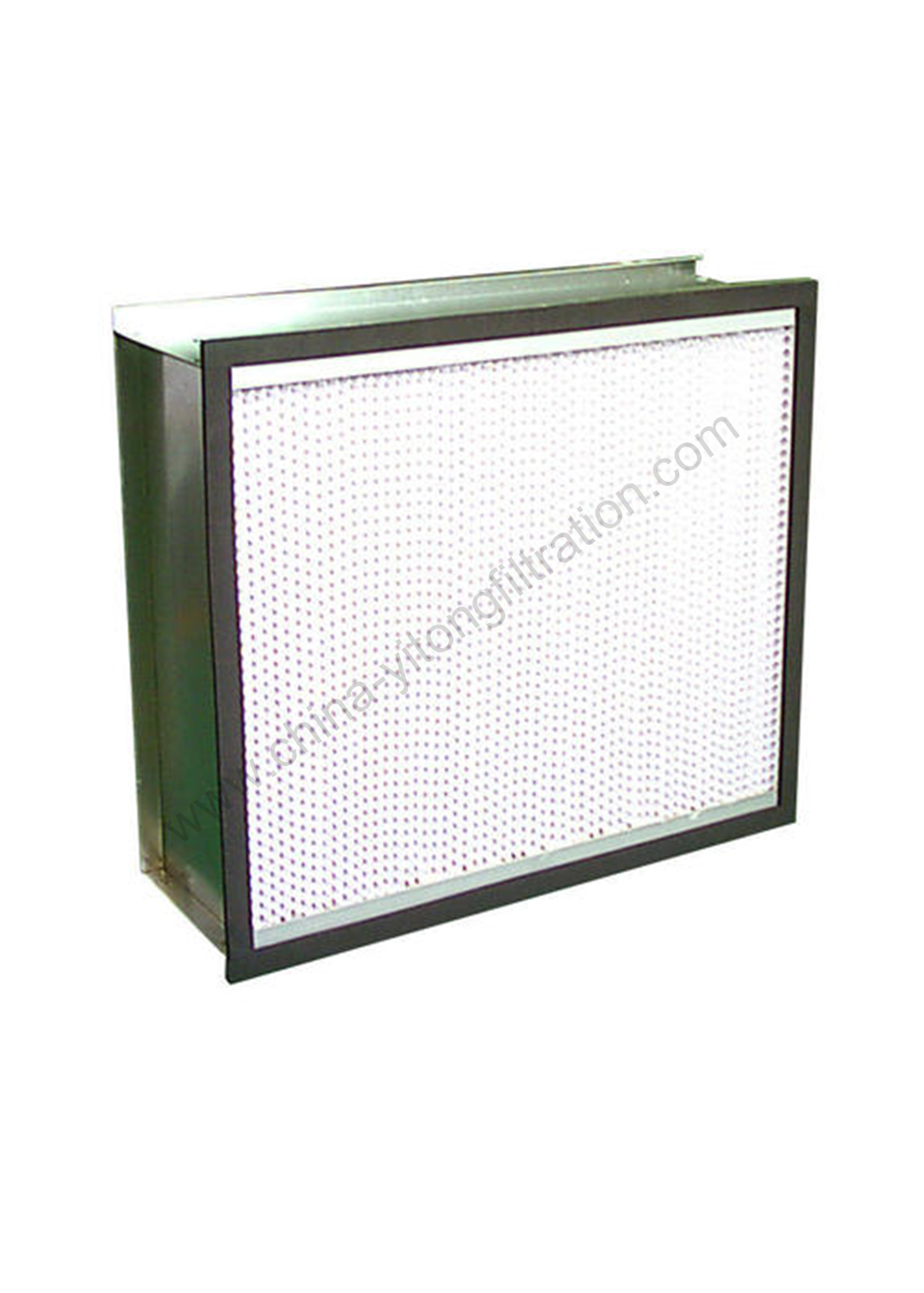

YTYG Series—Liquid Groove Seal High Efficiency Filter

Product Feature

1. Framework: aluminum alloy.

2. Filter material: high quality glass fiber filter material.

3. Segment material: thermosol.

4. Sealing type: imported liquid groove sealant.

5. The maximum working temperature: 80℃.


Application

It is widely used in clean rooms with high requirements, large area vertical laminar flow, 100-level laminar flow hood, biological safety cabinet, biotechnology, laboratory, sterile room, pharmaceutical factory, research institute and other clean rooms with high clean requirements.


Technical Parameter

Dimension(mm)Filtration efficiencyPrimal resistance(Pa)Rated air volume(m³/h)
400*400*90H13、H14≤220500
550*550*90H13、H14≤2201000
630*630*90H13、H14≤2201500
400*400*90H13、H14≤220500
550*550*90H13、H14≤2201000
630*630*90H13、H14≤2201500
Note: the above dimensions are normal size, which can be customerized according to requests and drawings.
