High Flow Rate Filter Housing

Share

High flow rate filters are developed for large diameter and high flow rate pipelines.

Products Details

High Flow Rate Filter Housing

Product Description

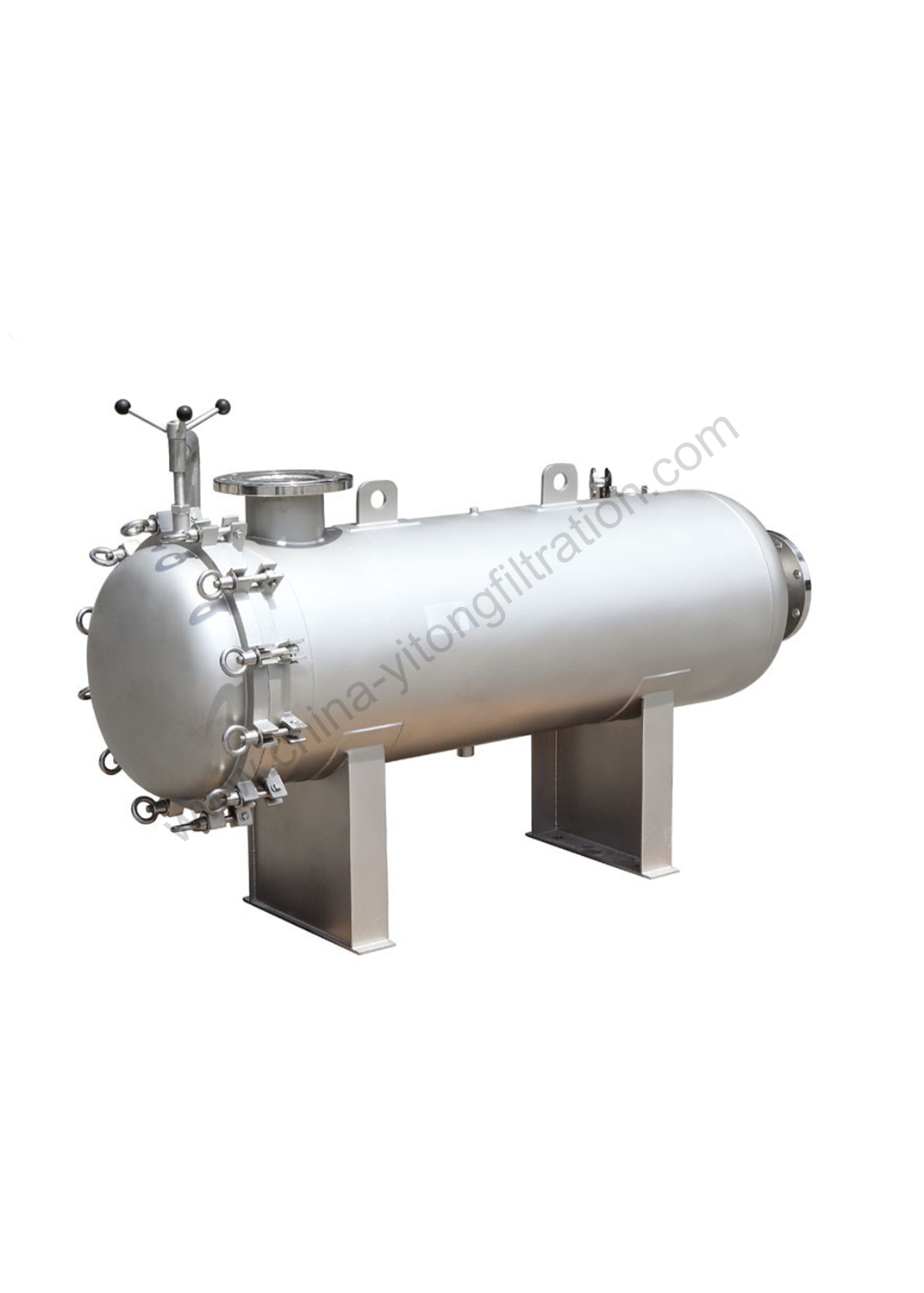

High flow rate filters are developed for large diameter and high flow rate pipelines. It adopts pleated large flow filters, which is equivalent to multiple area of traditional punched blue filter core and rod pleated filter core. more than 50% of porosity and straight open structure can combine the maximum flow rate and the minimum pressure drop, which greatly reduces the overall size and weight. It also reduces the investment cost and operation cost, and saves labor resources. Our company manufactures large flow rate filters with vertical and horizontal structures. We also supply customization service according to your request.

High Flow Rate Filter Housing

Operation Condition

Max operation pressure0.6/1.0 Mpa
Max operation temperature150℃


Shell304/316L
Vent/drain valve304/316L
Eye bolt304
GasketEPDM, PTFE, VITON

MaterialSurface treatment

Polishing typeMechanical polishing,electrolycal-polishing
Polishing accuracyInner-0.3umOuter-0.4um

Connection

ShellFlange
Inlet-N1,outlet-N2Tri-clamp, flange
Pressure gauge-N3G3/4" thread
Vent valve N4G1/2" thread
